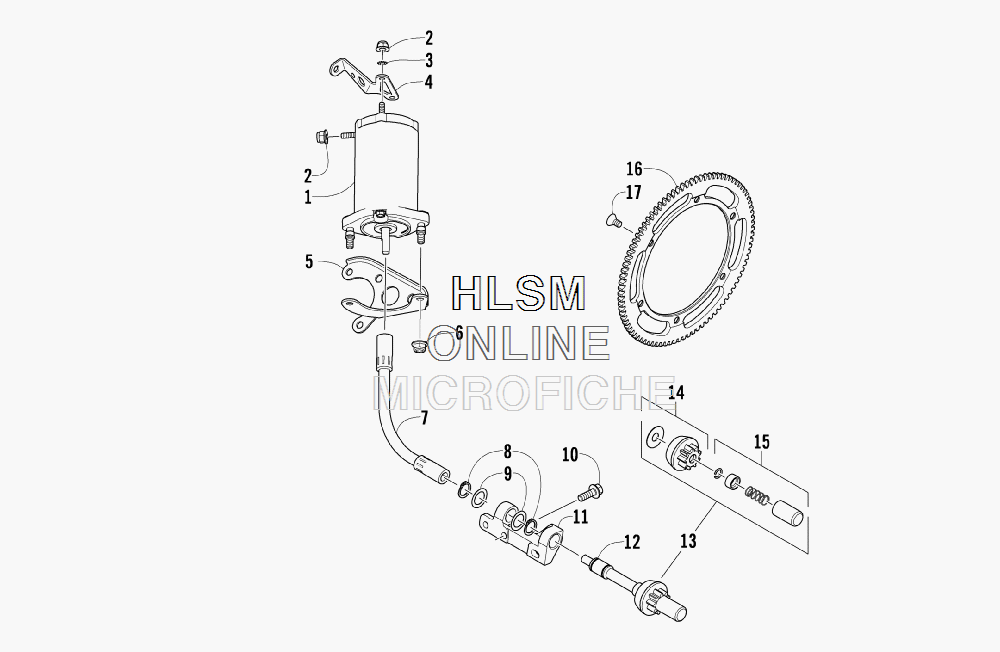

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat F5 LXR - 2010 года выпуска`
-
№АртикулНазвание
-
10745-356 MOTOR, STARTER - ASSEMBLY (INC. 2 AND 6)MOTOR, STARTER - ASSEMBLY (INC. 2 AND 6)
-
28427-602 ...NUT, LOCK...NUT, LOCK
-
38053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
40745-326 BRACKET, MOUNTING - STARTER MOTOR - TOPBRACKET, MOUNTING - STARTER MOTOR - TOP
-
50745-321 BRACKET, MOUNTING - STARTER MOTOR - BOTTOMBRACKET, MOUNTING - STARTER MOTOR - BOTTOM
-
68427-802 NUT, LOCKNUT, LOCK
-
70645-603 SHAFT, FLEX-DRIVESHAFT, FLEX-DRIVE
-
80645-382 RING, SNAPRING, SNAP
-
90645-429 WASHER, THRUSTWASHER, THRUST
-
108026-131 SCREW, CAPSCREW, CAP
-
110745-165 BRACKET, PINION DRIVEBRACKET, PINION DRIVE
-
120745-170 DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 13-15)DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 13-15)
-
130745-224 ...KIT, PINION DRIVE ASSEMBLY (INC. 14-15)...KIT, PINION DRIVE ASSEMBLY (INC. 14-15)
-
140645-380 ......PINION DRIVE ASSEMBLY......PINION DRIVE ASSEMBLY
-
150645-186 ......PINION STOPPER ASSEMBLY......PINION STOPPER ASSEMBLY
-
160645-367 RING GEARRING GEAR
-
171623-821 SCREW, MACHINESCREW, MACHINE
