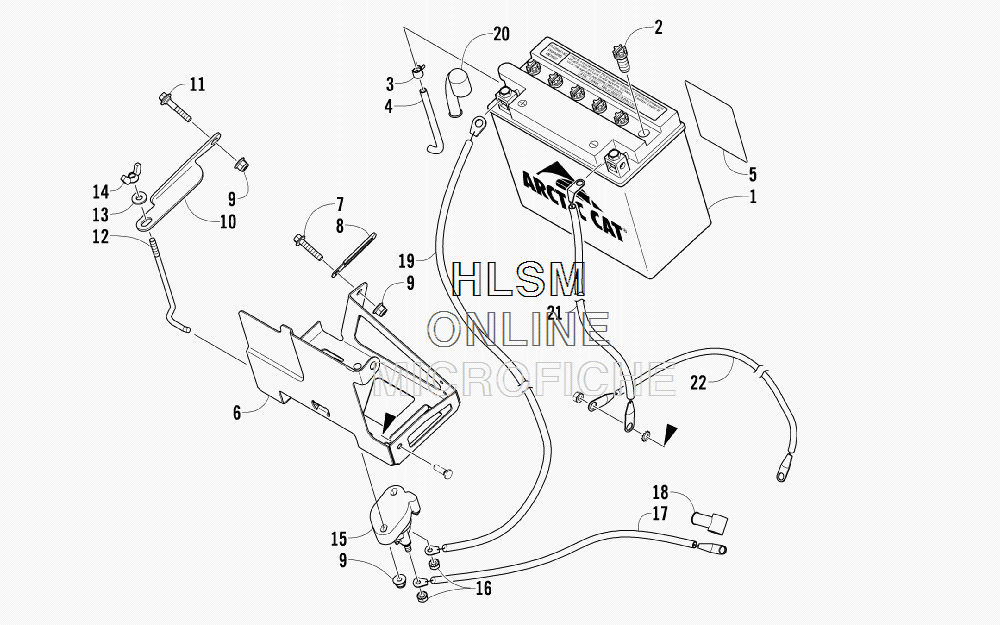

BATTERY AND TRAY ASSEMBLY для Arctic Cat F5 LXR - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-047 BATTERY (INC. 2-5)
    BATTERY (INC. 2-5)
  • 2
    0645-045 ...CAP, BATTERY
    ...CAP, BATTERY
  • 3
    0645-152 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 4
    0645-263 ...HOSE, VENT
    ...HOSE, VENT
  • 5
    0645-151 ...DECAL, WARNING
    ...DECAL, WARNING
  • 6
    0745-315 TRAY, BATTERY
    TRAY, BATTERY
  • 7
    8408-630 SCREW, CAP
    SCREW, CAP
  • 8
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    0745-318 BRACKET, HOLD-DOWN - BATTERY
    BRACKET, HOLD-DOWN - BATTERY
  • 11
    1623-725 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    0745-329 ROD, HOLD-DOWN - BATTERY
    ROD, HOLD-DOWN - BATTERY
  • 13
    8050-217 WASHER
    WASHER
  • 14
    0423-716 NUT, WING
    NUT, WING
  • 15
    0445-058 SOLENOID, STARTER RELAY
    SOLENOID, STARTER RELAY
  • 16
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 17
    0645-594 CABLE, SOLENOID/STARTER (INC. 18)
    CABLE, SOLENOID/STARTER (INC. 18)
  • 18
    0645-327 ...BOOT, TERMINAL
    ...BOOT, TERMINAL
  • 19
    0645-587 CABLE, BATTERY/SOLENOID (INC. 20)
    CABLE, BATTERY/SOLENOID (INC. 20)
  • 20
    0645-521 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 21
    0645-586 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 22
    0645-595 CABLE, STARTER-TO-GROUND
    CABLE, STARTER-TO-GROUND
