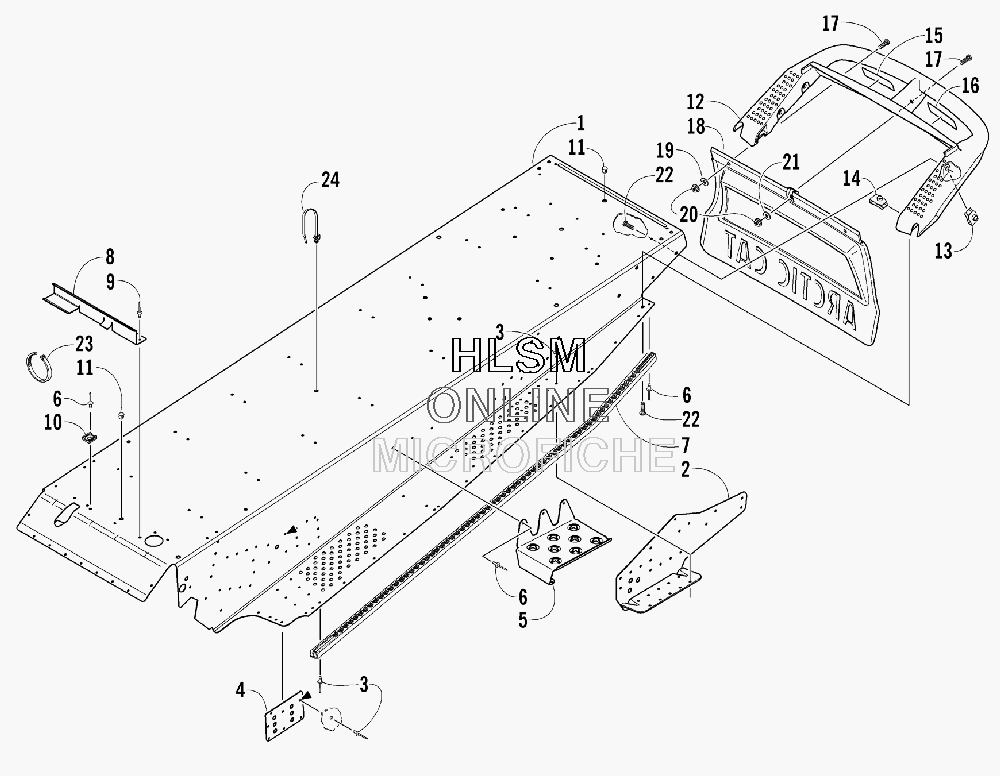

TUNNEL AND REAR BUMPER для Arctic Cat T660 TOURING - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-979 TUNNEL ASSEMBLY (INC. 2-3)
    TUNNEL ASSEMBLY (INC. 2-3)
  • 2
    1706-032 ...BRACKET, SUSPENSION MOUNTING - RIGHT
    ...BRACKET, SUSPENSION MOUNTING - RIGHT
  • 2
    1706-033 ...BRACKET, SUSPENSION MOUNTING - LEFT
    ...BRACKET, SUSPENSION MOUNTING - LEFT
  • 3
    0623-072 ...RIVET,SOLID ALUM-156 X370
    ...RIVET,SOLID ALUM-156 X370
  • 3
    0123-418 ...RIVET, SOLID ALUM-.156 X.312
    ...RIVET, SOLID ALUM-.156 X.312
  • 3
    8060-504 ...RIVET,BLIND-DH SS53 BLK (OPTIONAL)
    ...RIVET,BLIND-DH SS53 BLK (OPTIONAL)
  • 4
    2706-116 PLATE, SUSPENSION MOUNTING - FRONT
    PLATE, SUSPENSION MOUNTING - FRONT
  • 5
    3706-098 FOOTREST, REAR - RIGHT
    FOOTREST, REAR - RIGHT
  • 5
    3706-099 FOOTREST, REAR - LEFT
    FOOTREST, REAR - LEFT
  • 6
    8060-506 RIVET
    RIVET
  • 7
    2706-118 ROLL, TUNNEL - RIGHT
    ROLL, TUNNEL - RIGHT
  • 7
    2706-119 ROLL, TUNNEL - LEFT
    ROLL, TUNNEL - LEFT
  • 8
    0707-704 BRACKET, MAIN HARNESS PROTECTOR
    BRACKET, MAIN HARNESS PROTECTOR
  • 9
    0623-166 RIVET
    RIVET
  • 10
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 11
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 12
    1606-200 BUMPER, REAR
    BUMPER, REAR
  • 13
    0623-771 NUT, U
    NUT, U
  • 14
    0623-427 NUT, U
    NUT, U
  • 15
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 16
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 17
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    1606-507 SNOWFLAP
    SNOWFLAP
  • 19
    0623-184 WASHER
    WASHER
  • 20
    8047-366 NUT, LOCK
    NUT, LOCK
  • 21
    8050-217 WASHER
    WASHER
  • 22
    8017-581 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0123-903 CABLE TIE - 11.5 IN.
    CABLE TIE - 11.5 IN.
  • 24
    0623-677 CABLE TIE - PUSH-MOUNT
    CABLE TIE - PUSH-MOUNT
