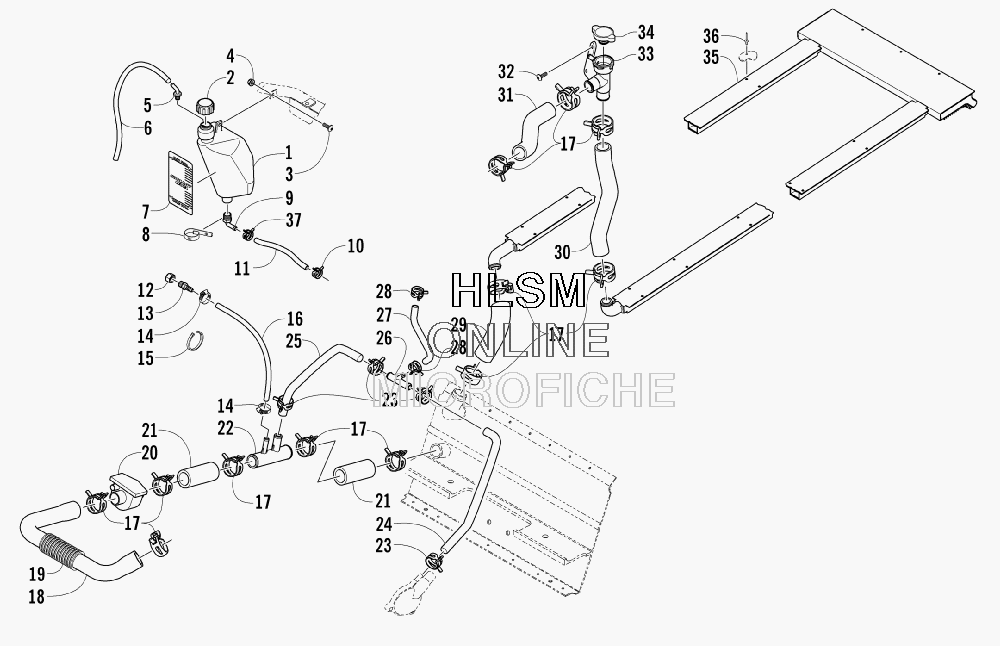

COOLING ASSEMBLY для Arctic Cat T660 TOURING - 2008 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48047-366 NUT, LOCKNUT, LOCK
-
50670-242 FITTING, VENTFITTING, VENT
-
60610-010 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
74611-093 DECAL, FILL LEVEL - COOLANT TANKDECAL, FILL LEVEL - COOLANT TANK
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-075 FITTING, ELBOWFITTING, ELBOW
-
100124-045 CLAMP, HOSECLAMP, HOSE
-
110610-015 HOSE - 100 FTHOSE - 100 FT
-
110610-016 HOSE - 25 FTHOSE - 25 FT
-
121670-303 PLUG, ADAPTERPLUG, ADAPTER
-
130623-976 ADAPTER, FITTINGADAPTER, FITTING
-
140623-373 CLAMP, HOSECLAMP, HOSE
-
150123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
160610-076 HOSE, COOLANT - DRAIN - 10 FTHOSE, COOLANT - DRAIN - 10 FT
-
170623-736 CLAMP, HOSECLAMP, HOSE
-
180610-453 HOSE, COOLANT - HEATER/ENGINEHOSE, COOLANT - HEATER/ENGINE
-
190619-619 PROTECTOR, HOSEPROTECTOR, HOSE
-
200609-182 HEATER, INLINEHEATER, INLINE
-
210610-539 HOSE, COOLANT - T-FITTING/INLINE HEATERHOSE, COOLANT - T-FITTING/INLINE HEATER
-
222606-502 T-FITTING - DOUBLET-FITTING - DOUBLE
-
231623-285 CLAMP, HOSECLAMP, HOSE
-
240610-519 HOSE, COOLANT - THERMOSTAT/Y-FITTINGHOSE, COOLANT - THERMOSTAT/Y-FITTING
-
250610-520 HOSE, COOLANT - Y-FITTING/T-FITTINGHOSE, COOLANT - Y-FITTING/T-FITTING
-
262606-625 Y-FITTINGY-FITTING
-
270610-518 HOSE, COOLANT - THROTTLE BODY/Y-FITTINGHOSE, COOLANT - THROTTLE BODY/Y-FITTING
-
281623-197 CLAMP, HOSECLAMP, HOSE
-
290610-244 HOSE, COOLANT - FRONT HEAT EXCHANGER/REAR HEAT EXCHANGERHOSE, COOLANT - FRONT HEAT EXCHANGER/REAR HEAT EXCHANGER
-
300610-652 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
310610-653 HOSE, COOLANT - FILLER NECK/ENGINEHOSE, COOLANT - FILLER NECK/ENGINE
-
321623-547 SCREW, MACHINE W/LOCTITESCREW, MACHINE W/LOCTITE
-
333606-857 NECK, FILLERNECK, FILLER
-
342606-284 CAP, FILLER NECKCAP, FILLER NECK
-
352706-078 HEAT EXCHANGER, REARHEAT EXCHANGER, REAR
-
368060-706 RIVETRIVET
