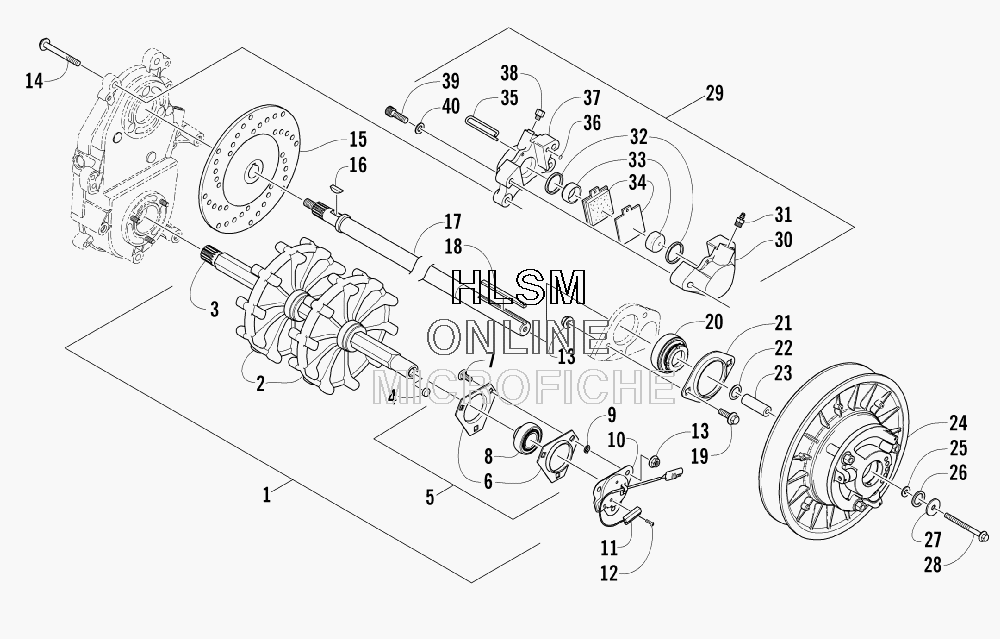

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat T660 TOURING - 2008 года выпуска`
-
№АртикулНазвание
-
10728-116 TRACK DRIVE - ASSEMBLY (INC. 2-9)TRACK DRIVE - ASSEMBLY (INC. 2-9)
-
21602-507 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
31602-585 ...DRIVESHAFT...DRIVESHAFT
-
40630-167 ...MAGNET, DISC...MAGNET, DISC
-
50702-567 ...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)...PLATE, FLANGE - BEARING ASSEMBLY (INC. 6-9)
-
60602-198 ......PLATE, FLANGE......PLATE, FLANGE
-
78011-130 ......BOLT, CARRIAGE......BOLT, CARRIAGE
-
81602-374 ......BEARING, 1 IN.......BEARING, 1 IN.
-
90623-810 ......RING, SOLDER......RING, SOLDER
-
103606-244 BRACKET, SPEEDOMETER SENSORBRACKET, SPEEDOMETER SENSOR
-
110630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
120623-462 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138047-426 NUT, LOCKNUT, LOCK
-
141623-558 SCREW, CAPSCREW, CAP
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-810 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
198020-222 SCREW, CAPSCREW, CAP
-
201602-983 BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
-
212602-039 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHER,FLAT-1.00 X1.43 X.030WASHER,FLAT-1.00 X1.43 X.030
-
220623-119 WASHER,FLAT-1.00 X1.43 X.075WASHER,FLAT-1.00 X1.43 X.075
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-230 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
281623-561 SCREW, CAPSCREW, CAP
-
290602-829 CALIPER, BRAKE - ASSEMBLY (INC. 30-40)CALIPER, BRAKE - ASSEMBLY (INC. 30-40)
-
310602-707 ...SCREW, BLEED - ASSEMBLY...SCREW, BLEED - ASSEMBLY
-
320602-583 ...O-RING...O-RING
-
330602-708 ...PISTON...PISTON
-
340702-229 ...PAD, BRAKE - SET (INC. 35)...PAD, BRAKE - SET (INC. 35)
-
350602-706 ......PIN, RETAINING......PIN, RETAINING
-
360602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
380602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
398005-677 ...SCREW, CAP...SCREW, CAP
-
408050-272 ...WASHER...WASHER
