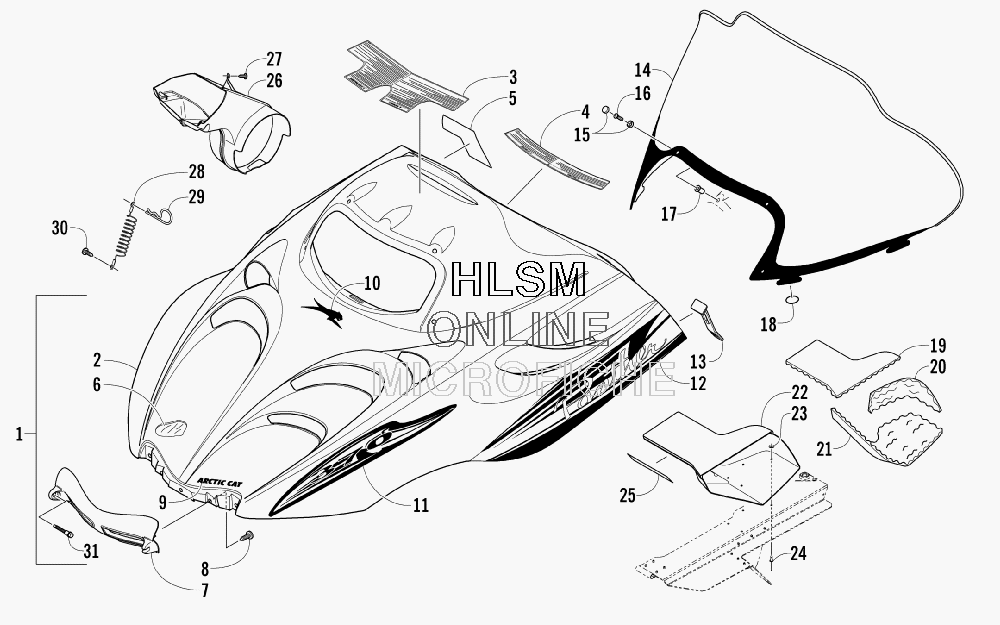

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat PANTHER 370 - 2008 года выпуска`
-
№АртикулНазвание
-
12718-431 HOOD W/DECALS - BLACK (INC. 2-12)HOOD W/DECALS - BLACK (INC. 2-12)
-
21718-971 ...HOOD W/O DECALS - BLACK (INC. 3-8)...HOOD W/O DECALS - BLACK (INC. 3-8)
-
33611-485 ......DECAL, WARNING - GENERAL AND BRAKE......DECAL, WARNING - GENERAL AND BRAKE
-
43611-970 ......DECAL, CAUTION - ENGINE/BATTERY/FUEL......DECAL, CAUTION - ENGINE/BATTERY/FUEL
-
53611-580 ......DECAL, REVERSE......DECAL, REVERSE
-
61606-938 ......FOIL, HOOD - RIGHT......FOIL, HOOD - RIGHT
-
61606-939 ......FOIL, HOOD - LEFT......FOIL, HOOD - LEFT
-
74606-004 ......HINGE, HOOD......HINGE, HOOD
-
80623-797 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
97611-824 ...DECAL, "ARCTIC CAT" - HOOD...DECAL, "ARCTIC CAT" - HOOD
-
108611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
118611-272 ...DECAL, HOOD - UPPER RIGHT...DECAL, HOOD - UPPER RIGHT
-
118611-273 ...DECAL, HOOD - UPPER LEFT...DECAL, HOOD - UPPER LEFT
-
127611-820 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
127611-821 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
131606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
142606-432 WINDSHIELDWINDSHIELD
-
150124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
160623-902 SCREW, MACHINESCREW, MACHINE
-
170623-845 NUT, EXPANSIONNUT, EXPANSION
-
180616-032 O-RINGO-RING
-
190617-453 FOAM, AIR-OUT DUCT - TOPFOAM, AIR-OUT DUCT - TOP
-
200617-454 FOAM, AIR-OUT DUCT - SIDEFOAM, AIR-OUT DUCT - SIDE
-
210617-452 FOAM, AIR-OUT DUCT - BOTTOMFOAM, AIR-OUT DUCT - BOTTOM
-
221606-872 DUCT, AIR-OUTDUCT, AIR-OUT
-
230123-149 WASHERWASHER
-
248060-506 RIVETRIVET
-
250619-206 TAPE, FOILTAPE, FOIL
-
261606-829 DUCT, AIR-INDUCT, AIR-IN
-
270623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
282606-247 CABLE, HOODCABLE, HOOD
-
290623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
300623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
311623-016 SCREW, MACHINESCREW, MACHINE
