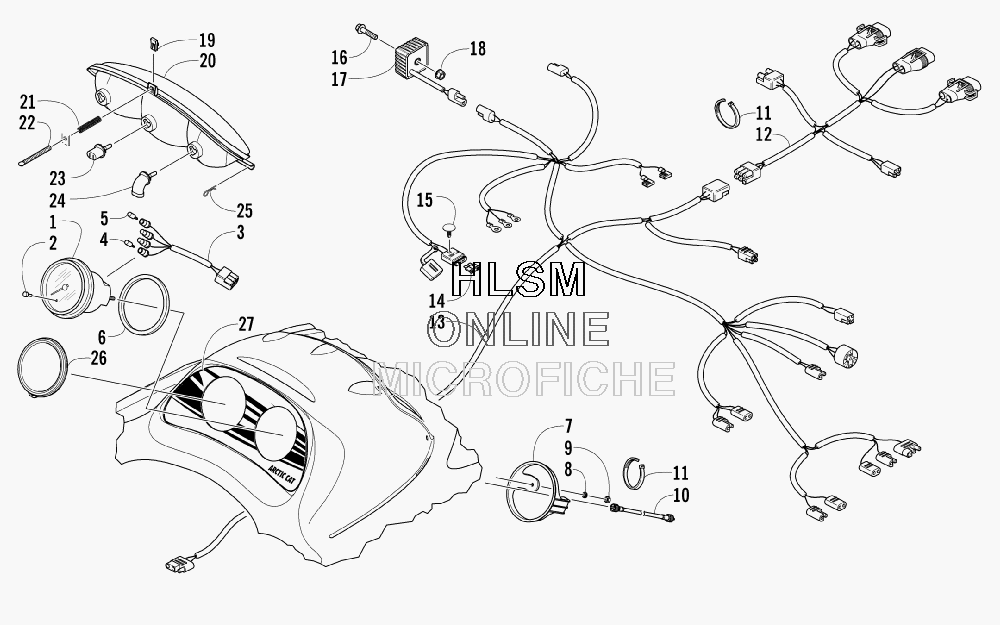

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat PANTHER 370 - 2008 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 2-5)SPEEDOMETER (INC. 2-5)
-
20620-073 ...KNOB, TRIPMETER...KNOB, TRIPMETER
-
30620-151 ...HARNESS, BULB - SPEEDOMETER (INC. 4-5)...HARNESS, BULB - SPEEDOMETER (INC. 4-5)
-
40620-149 ......BULB, INDICATOR......BULB, INDICATOR
-
50230-020 ......BULB, INSTRUMENT......BULB, INSTRUMENT
-
60620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
70620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
88050-212 WASHERWASHER
-
90623-038 NUT W/WASHERNUT W/WASHER
-
100620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
110123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
120686-515 HARNESS, HOODHARNESS, HOOD
-
131686-079 HARNESS, MAIN (INC. 14)HARNESS, MAIN (INC. 14)
-
140630-100 ...FUSE, 7.5 AMP...FUSE, 7.5 AMP
-
150623-589 CLIP, RETAININGCLIP, RETAINING
-
168020-045 SCREW, CAPSCREW, CAP
-
170630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
188047-366 NUT, LOCKNUT, LOCK
-
190623-757 NUT, SPEEDNUT, SPEED
-
200609-250 LENS/REFLECTOR - HEADLIGHTLENS/REFLECTOR - HEADLIGHT
-
210623-466 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
220623-467 SCREW, THUMBSCREW, THUMB
-
230609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
240609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
250623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
262606-069 PLUG, GAUGE HOLE (INCLUDED IN HOOD W/DECALS)PLUG, GAUGE HOLE (INCLUDED IN HOOD W/DECALS)
-
277611-815 DECAL, CONSOLE (INCLUDED IN HOOD W/DECALS)DECAL, CONSOLE (INCLUDED IN HOOD W/DECALS)
