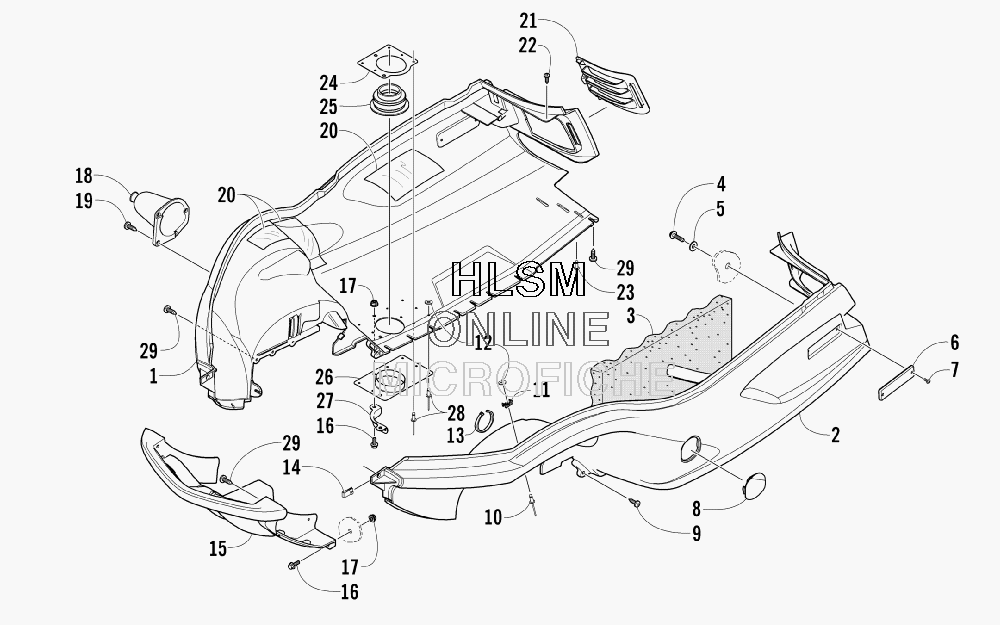

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat PANTHER 370 - 2008 года выпуска`
-
№АртикулНазвание
-
13706-328 BELLY PAN - RIGHT - PLATINUMBELLY PAN - RIGHT - PLATINUM
-
23706-329 BELLY PAN - LEFT - PLATINUMBELLY PAN - LEFT - PLATINUM
-
30617-315 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
40623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50623-184 WASHERWASHER
-
60606-526 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
84606-216 PANEL, CLUTCH ACCESS - PLATINUMPANEL, CLUTCH ACCESS - PLATINUM
-
90623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
108060-506 RIVETRIVET
-
110623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
120123-149 WASHERWASHER
-
130123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
140623-427 NUT, UNUT, U
-
153706-015 BUMPER, FRONTBUMPER, FRONT
-
168020-040 SCREW, CAPSCREW, CAP
-
178047-366 NUT, LOCKNUT, LOCK
-
180605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
180605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
190623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200619-206 TAPE, FOILTAPE, FOIL
-
214606-214 LOUVER, AIR-INTAKE - RIGHTLOUVER, AIR-INTAKE - RIGHT
-
214606-215 LOUVER, AIR-INTAKE - LEFTLOUVER, AIR-INTAKE - LEFT
-
220623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
238061-508 RIVETRIVET
-
240712-881 RING, EXHAUST OUTLET - UPPERRING, EXHAUST OUTLET - UPPER
-
251612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
260712-880 RING, EXHAUST OUTLET - LOWERRING, EXHAUST OUTLET - LOWER
-
270712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
288060-508 RIVETRIVET
-
291623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
