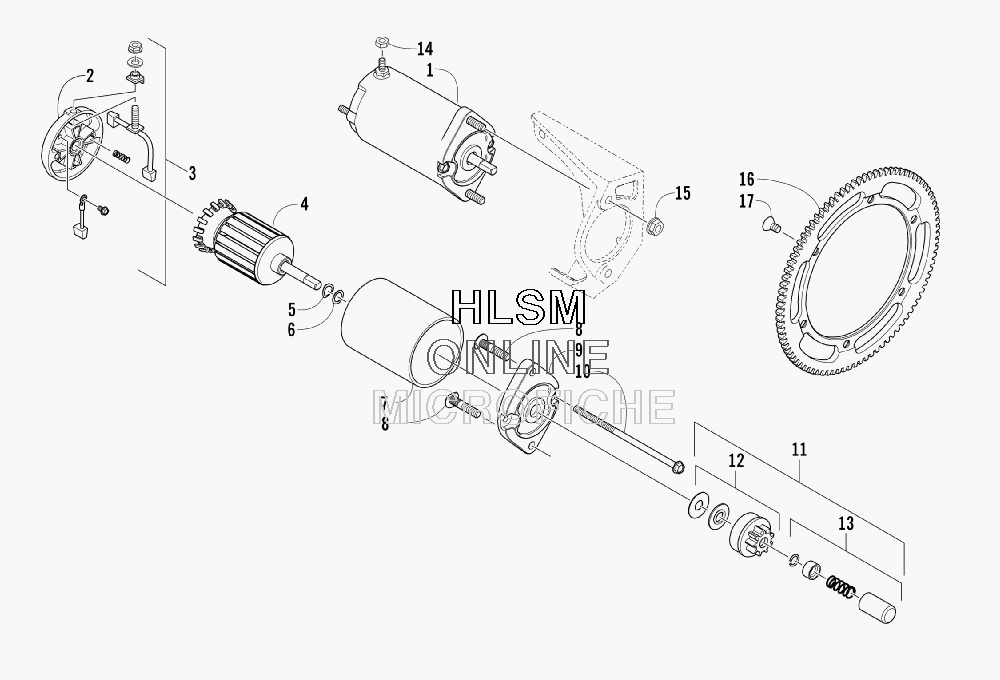

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat PANTHER 370 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-257 MOTOR, STARTER (INC. 2-13)
    MOTOR, STARTER (INC. 2-13)
  • 2
    0645-277 ...CAP, COMMUTATOR (INC. 3)
    ...CAP, COMMUTATOR (INC. 3)
  • 3
    0645-275 ......KIT, BRUSH AND SPRING
    ......KIT, BRUSH AND SPRING
  • 4
    0645-189 ...ARMATURE
    ...ARMATURE
  • 5
    0645-126 ...WASHER, WAVE
    ...WASHER, WAVE
  • 6
    0645-127 ...WASHER, THRUST
    ...WASHER, THRUST
  • 8
    0623-093 ...BOLT, RIBBED
    ...BOLT, RIBBED
  • 9
    0645-188 ...CAP, DRIVE
    ...CAP, DRIVE
  • 10
    0645-191 ...BOLT, STARTER MOTOR
    ...BOLT, STARTER MOTOR
  • 11
    0745-145 ...PINION DRIVE ASSEMBLY (INC. 12-13)
    ...PINION DRIVE ASSEMBLY (INC. 12-13)
  • 12
    0745-146 ......KIT, PINION DRIVE
    ......KIT, PINION DRIVE
  • 13
    0645-186 ......KIT, PINION STOPPER
    ......KIT, PINION STOPPER
  • 14
    0623-122 NUT
    NUT
  • 15
    8047-426 NUT, LOCK
    NUT, LOCK
  • 16
    0645-168 GEAR, RING
    GEAR, RING
  • 17
    1623-128 SCREW, MACHINE
    SCREW, MACHINE
