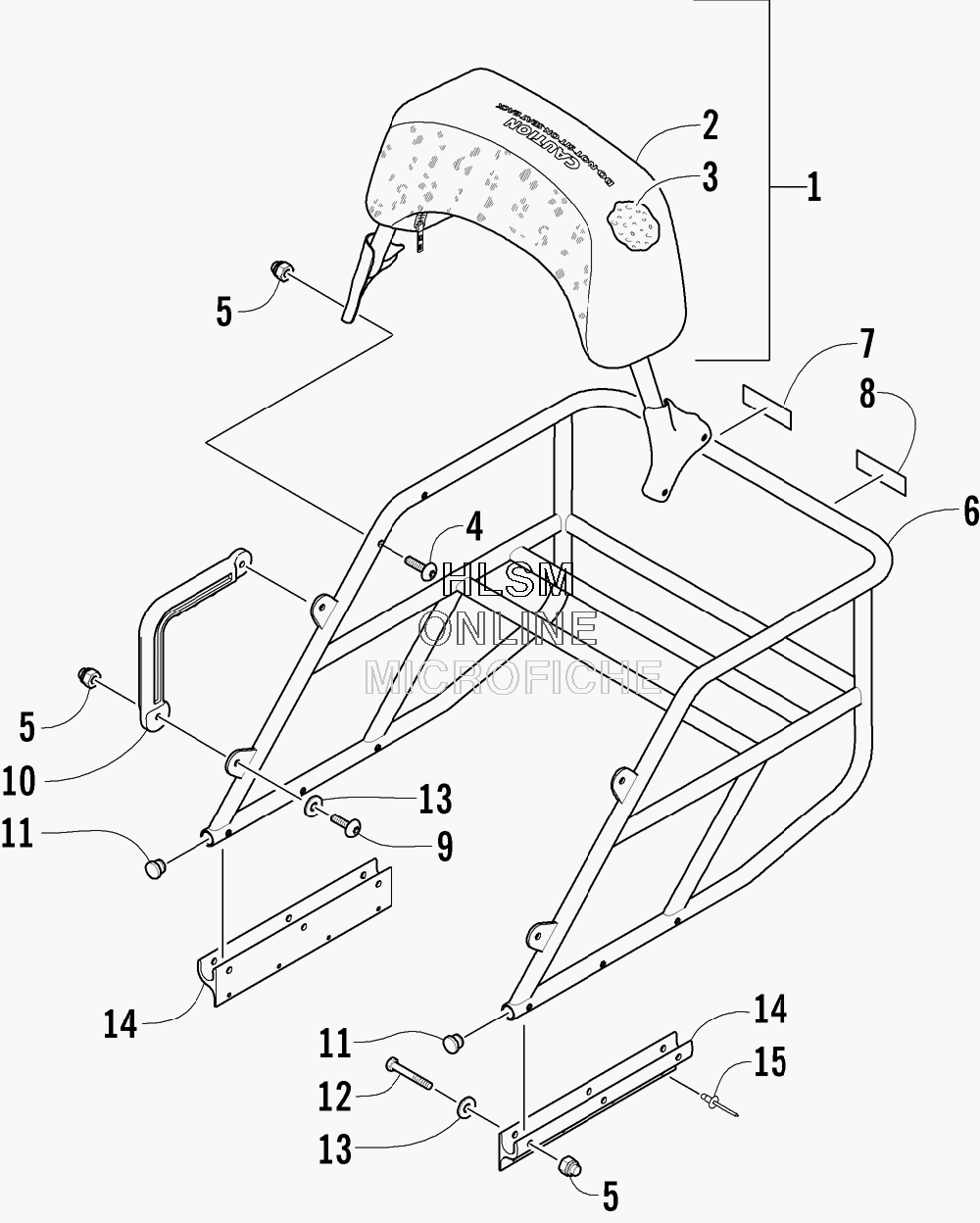

RACK AND BACKREST ASSEMBLY для Arctic Cat PANTHER 370 (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13706-371 BACKREST - COMPLETE (INC. 2-3)BACKREST - COMPLETE (INC. 2-3)
-
23706-370 ...COVER, BACKREST...COVER, BACKREST
-
30716-705 ...FOAM, BACKREST...FOAM, BACKREST
-
48017-584 SCREW, MACHINESCREW, MACHINE
-
50123-108 NUT, CAPNUT, CAP
-
63706-185 RACKRACK
-
71611-568 DECAL, CAUTION - MAX PAYLOAD (ENGLISH)DECAL, CAUTION - MAX PAYLOAD (ENGLISH)
-
81611-569 DECAL, CAUTION - MAX PAYLOAD (FRENCH)DECAL, CAUTION - MAX PAYLOAD (FRENCH)
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
100606-750 HANDGRIP, BACKRESTHANDGRIP, BACKREST
-
110606-487 CLOSURE, TUBECLOSURE, TUBE
-
120623-032 SCREW, CAPSCREW, CAP
-
138050-217 WASHERWASHER
-
142706-318 BRACKET, MOUNTING - RACKBRACKET, MOUNTING - RACK
-
158060-506 RIVETRIVET
