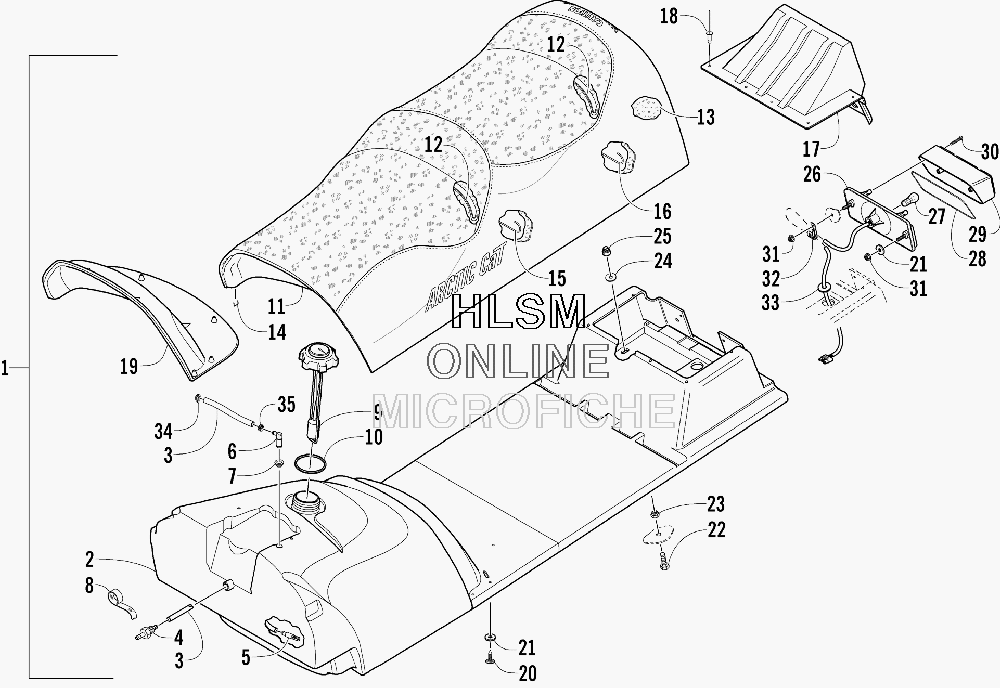

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 370 (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
12718-048 COMPLETE SEAT ASSEMBLY (INC. 2-20 AND TWO NO. 21)COMPLETE SEAT ASSEMBLY (INC. 2-20 AND TWO NO. 21)
-
20770-654 ...TANK, GAS/SEAT-BASE (INC. 3-10)...TANK, GAS/SEAT-BASE (INC. 3-10)
-
36101-001 ......HOSE, GASLINE - 100 FT......HOSE, GASLINE - 100 FT
-
36101-009 ......HOSE, GASLINE - 25 FT......HOSE, GASLINE - 25 FT
-
40670-042 ......OUTLET, TANK......OUTLET, TANK
-
50510-358 ......STRAINER, GAS TANK......STRAINER, GAS TANK
-
61670-494 ......VENT, GAS TANK......VENT, GAS TANK
-
71670-325 ......GROMMET......GROMMET
-
80670-289 ......TAPE, TEFLON......TAPE, TEFLON
-
90670-658 ......CAP, GAS TANK W/SEAL (INC. 10)......CAP, GAS TANK W/SEAL (INC. 10)
-
100109-733 .........SEAL, GAS TANK CAP.........SEAL, GAS TANK CAP
-
113706-330 ...COVER, SEAT (INC. 12)...COVER, SEAT (INC. 12)
-
123606-363 ......WIRE, SEAT......WIRE, SEAT
-
130716-991 ...FOAM, SEAT CUSHION...FOAM, SEAT CUSHION
-
140624-528 ...STAPLE, SEAT COVER...STAPLE, SEAT COVER
-
152606-943 ...WIRE, SEAT...WIRE, SEAT
-
162606-942 ...WIRE, SEAT...WIRE, SEAT
-
171606-191 ...EXTENSION, TOOLBOX...EXTENSION, TOOLBOX
-
180623-853 ...RIVET...RIVET
-
191606-612 ...INSERT, SEAT FOAM...INSERT, SEAT FOAM
-
200623-309 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
218050-217 ...WASHER...WASHER
-
228020-041 SCREW, CAPSCREW, CAP
-
238047-366 NUT, LOCKNUT, LOCK
-
240623-184 WASHERWASHER
-
250123-108 NUT, CAPNUT, CAP
-
260609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
270109-460 BULBBULB
-
280609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
290609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
300609-093 SCREW, RETAININGSCREW, RETAINING
-
310623-038 NUT W/WASHERNUT W/WASHER
-
323002-964 CLAMP, WIRECLAMP, WIRE
-
330617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
340623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
351623-042 CLAMP, HOSECLAMP, HOSE
