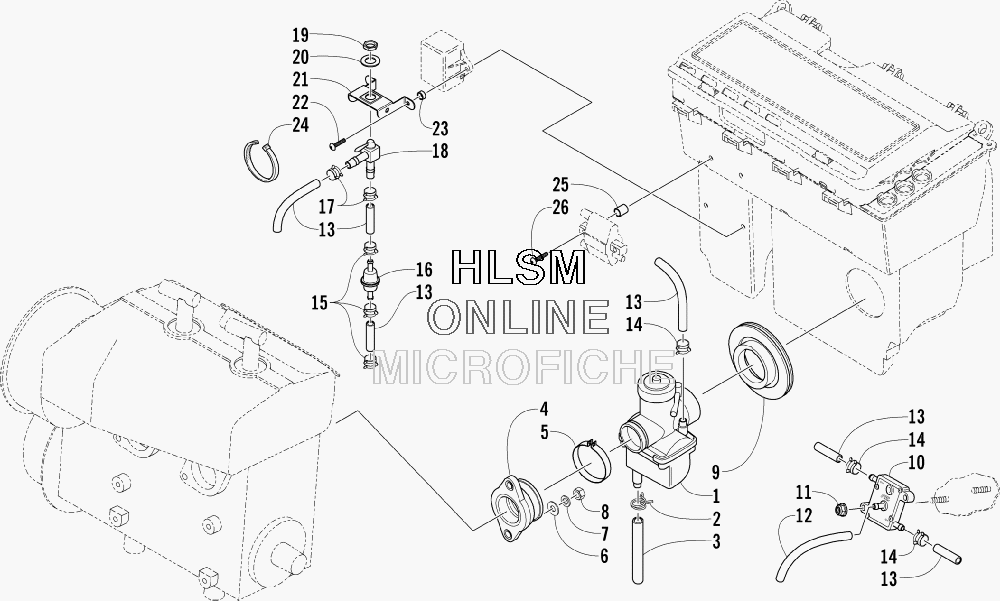

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat PANTHER 370 (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
11670-895 CARBURETOR - VM32-309CARBURETOR - VM32-309
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 ...CLAMP, CARBURETOR FLANGE...CLAMP, CARBURETOR FLANGE
-
60423-472 WASHERWASHER
-
70423-467 WASHER, LOCKWASHER, LOCK
-
88420-802 NUTNUT
-
91670-267 BOOT, CARBURETORBOOT, CARBURETOR
-
100115-481 PUMP, FUELPUMP, FUEL
-
118047-366 NUT, LOCKNUT, LOCK
-
120610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
136101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
136101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
141623-233 CLAMP, HOSECLAMP, HOSE
-
151623-042 CLAMP, HOSECLAMP, HOSE
-
160510-335 FILTER, FUELFILTER, FUEL
-
171623-351 CLAMP, HOSECLAMP, HOSE
-
180670-144 VALVE, FUEL SHUT-OFF (INC. 19-20)VALVE, FUEL SHUT-OFF (INC. 19-20)
-
190623-287 ...NUT...NUT
-
200623-288 ...WASHER...WASHER
-
210770-614 BRACKET, MOUNTING - FUEL SHUT-OFF VALVEBRACKET, MOUNTING - FUEL SHUT-OFF VALVE
-
228017-402 SCREW, MACHINESCREW, MACHINE
-
230107-234 SPACERSPACER
-
240123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
251623-045 SPACERSPACER
-
268017-406 SCREW, MACHINESCREW, MACHINE
