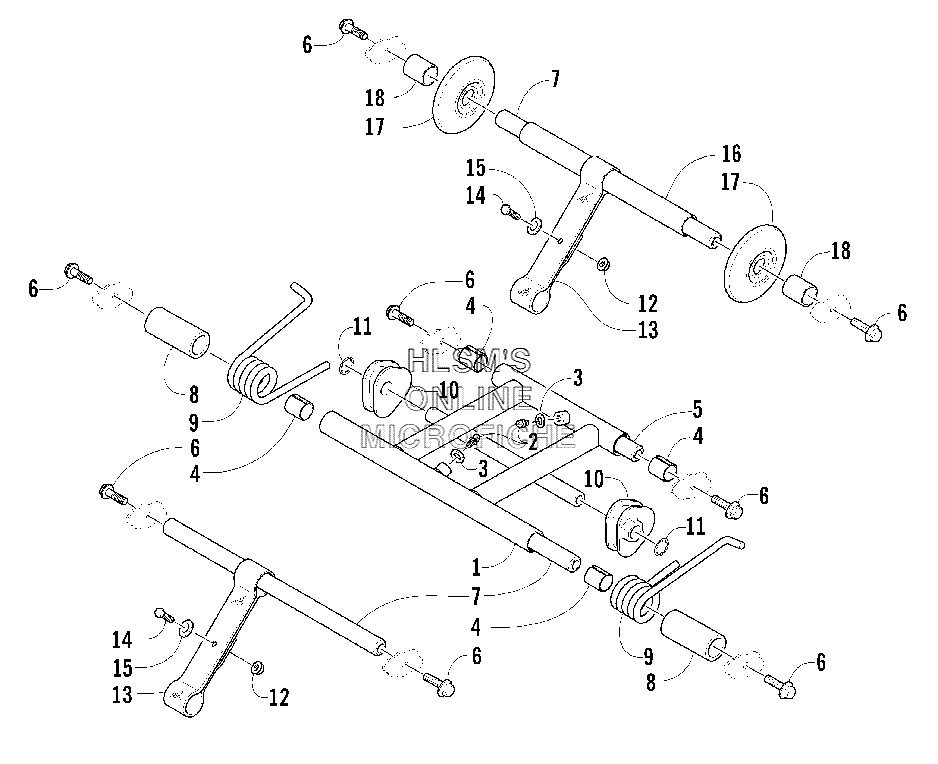

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat F 120 (ORANGE) - 2006 года выпуска`
-
№АртикулНазвание
-
11704-287 ARM, REAR SUSPENSION (INC. 2 4)ARM, REAR SUSPENSION (INC. 2 4)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
31623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
40603-083 BEARINGBEARING
-
51604-710 AXLE, REAR SUSPENSION ARM (LOWER)AXLE, REAR SUSPENSION ARM (LOWER)
-
68020-131 SCREW, CAPSCREW, CAP
-
71604-673 AXLE, IDLERAXLE, IDLER
-
81604-715 SLEEVE, SPRINGSLEEVE, SPRING
-
90704-894 SPRING, REAR SUSPENSION (RIGHT)SPRING, REAR SUSPENSION (RIGHT)
-
90704-895 SPRING, REAR SUSPENSION (LEFT)SPRING, REAR SUSPENSION (LEFT)
-
101604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
101604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
110623-138 RING, RETAININGRING, RETAINING
-
128047-366 NUT, LOCKNUT, LOCK
-
131604-708 STRAP, LIMITERSTRAP, LIMITER
-
148002-042 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
161604-564 SPACERSPACER
-
170300-180 WHEEL, IDLERWHEEL, IDLER
-
181604-565 SPACERSPACER
