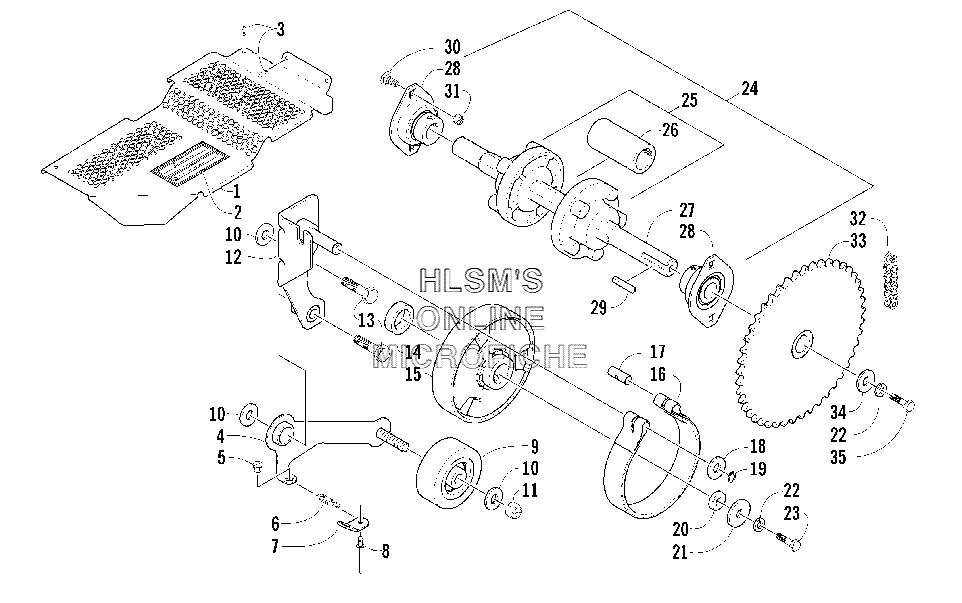

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat F 120 (ORANGE) - 2006 года выпуска`
-
№АртикулНазвание
-
10712-915 SHIELD, CLUTCH/BRAKE/MUFFLERSHIELD, CLUTCH/BRAKE/MUFFLER
-
23611-754 DECAL, WARNING GUARDDECAL, WARNING GUARD
-
30623-797 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
40702-376 TENSIONER, CHAINTENSIONER, CHAIN
-
50623-868 BUSHING, SNAPBUSHING, SNAP
-
61612-178 SPRING, TENSIONER CHAINSPRING, TENSIONER CHAIN
-
72606-021 TAB, SPRING RETAINERTAB, SPRING RETAINER
-
88060-484 RIVETRIVET
-
91602-065 ROLLER, CHAIN TENSIONERROLLER, CHAIN TENSIONER
-
108050-247 WASHERWASHER
-
118041-426 NUT, LOCKNUT, LOCK
-
120702-360 BRACKET, BRAKEBRACKET, BRAKE
-
138004-135 SCREW, CAPSCREW, CAP
-
141602-026 SPACER, CLUTCH INNERSPACER, CLUTCH INNER
-
151602-020 CLUTCH, CENTRIFUGALCLUTCH, CENTRIFUGAL
-
161602-021 BAND, BRAKE (INC. 17)BAND, BRAKE (INC. 17)
-
171602-049 PIN, RETAINER BRAKE CABLEPIN, RETAINER BRAKE CABLE
-
188050-277 WASHERWASHER
-
190623-821 RING, SNAPRING, SNAP
-
201602-027 SPACER, CLUTCH OUTERSPACER, CLUTCH OUTER
-
210123-260 WASHERWASHER
-
228051-242 WASHER, LOCKWASHER, LOCK
-
238004-132 SCREW, CAPSCREW, CAP
-
240728-145 TRACK DRIVE ASSEMBLY (INC. 25 28)TRACK DRIVE ASSEMBLY (INC. 25 28)
-
251602-117 SPROCKET, TRACK DRIVESPROCKET, TRACK DRIVE
-
261602-148 SPACERSPACER
-
271602-850 SHAFT, TRACK DRIVE SPROCKETSHAFT, TRACK DRIVE SPROCKET
-
281602-851 BEARING, CHAIN SPROCKETBEARING, CHAIN SPROCKET
-
290623-823 KEYKEY
-
308011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
318047-426 NUT, LOCKNUT, LOCK
-
321602-019 CHAIN 76PCHAIN 76P
-
331602-018 SPROCKET, CHAINSPROCKET, CHAIN
-
340123-019 WASHERWASHER
-
358002-131 SCREW, CAPSCREW, CAP
