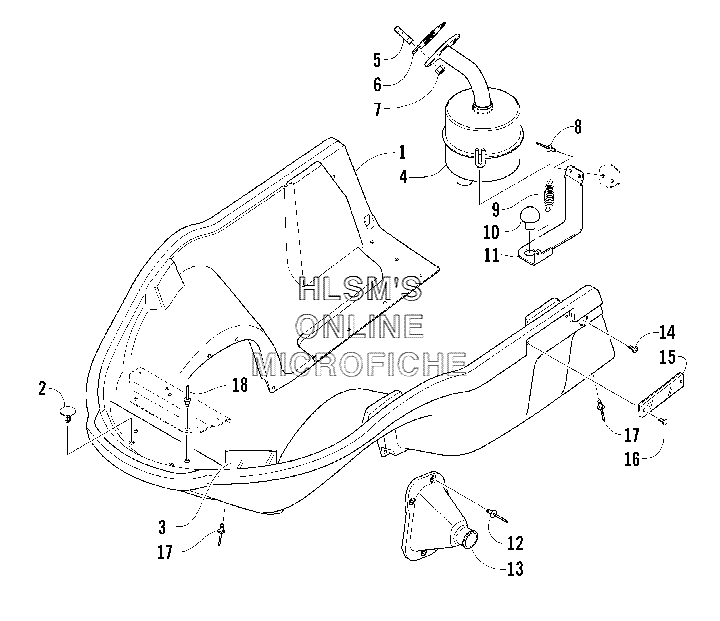

BELLY PAN AND EXHAUST ASSEMBLIES для Arctic Cat F 120 (ORANGE) - 2006 года выпуска`
-
№АртикулНазвание
-
13706-072 BELLY PAN (INC. 2)BELLY PAN (INC. 2)
-
20623-544 CLIP, RETAININGCLIP, RETAINING
-
30619-206 TAPE, FOILTAPE, FOIL
-
40712-937 MUFFLERMUFFLER
-
50693-317 BOLT, STUDBOLT, STUD
-
60691-852 GASKET, EXHAUSTGASKET, EXHAUST
-
73004-326 NUTNUT
-
88060-504 RIVET, BLINDRIVET, BLIND
-
90123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
100612-111 BUMPER, MOLDED RUBBERBUMPER, MOLDED RUBBER
-
110712-914 BRACKET, MUFFLER SUPPORTBRACKET, MUFFLER SUPPORT
-
128060-508 RIVETRIVET
-
130605-464 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
130605-465 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
141623-129 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
150606-526 REFLECTOR, FRONT AMBERREFLECTOR, FRONT AMBER
-
160623-269 CLIP, RETAININGCLIP, RETAINING
-
178061-508 RIVETRIVET
-
180623-778 RIVETRIVET
