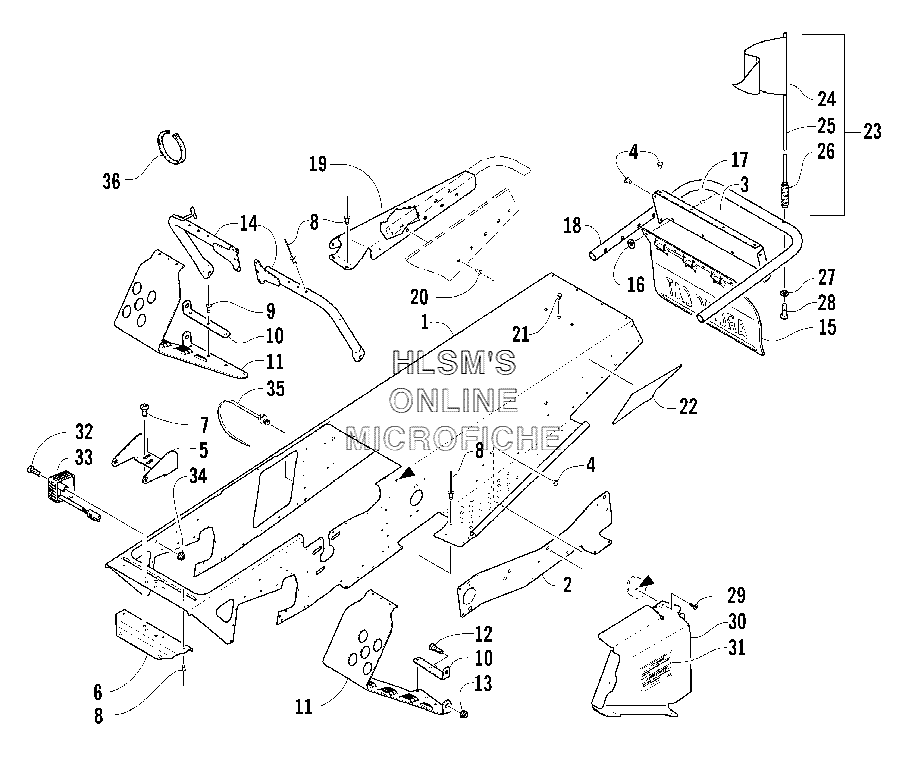

CHASIS- FOOTREST- AND REAR BUMPER ASSEMBLIES для Arctic Cat F 120 (ORANGE) - 2006 года выпуска`
-
№АртикулНазвание
-
11718-900 TUNNEL ASSEMBLY (INC. 2 4)TUNNEL ASSEMBLY (INC. 2 4)
-
22706-156 PLATE, REINFORCEMENT TUNNEL (RIGHT)PLATE, REINFORCEMENT TUNNEL (RIGHT)
-
22706-157 PLATE, REINFORCEMENT TUNNEL (LEFT)PLATE, REINFORCEMENT TUNNEL (LEFT)
-
32706-158 PLATE, COVER TUNNELPLATE, COVER TUNNEL
-
40123-418 RIVET, SOLIDRIVET, SOLID
-
52706-141 BRACKET, MOUNTING HOOD (LOWER)BRACKET, MOUNTING HOOD (LOWER)
-
63606-993 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
70623-892 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
88060-504 RIVET, BLINDRIVET, BLIND
-
98060-506 RIVET, BLINDRIVET, BLIND
-
102706-180 BRACKET, SUPPORT FOOTREST (RIGHT)BRACKET, SUPPORT FOOTREST (RIGHT)
-
102706-181 BRACKET, SUPPORT FOOTREST (LEFT)BRACKET, SUPPORT FOOTREST (LEFT)
-
111606-784 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
111606-785 FOOTREST (LEFT)FOOTREST (LEFT)
-
128002-040 SCREW, CAPSCREW, CAP
-
138041-366 NUT, LOCKNUT, LOCK
-
141706-283 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
141706-041 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
151606-750 SNOWFLAPSNOWFLAP
-
160123-802 WASHERWASHER
-
178060-628 RIVET, BLINDRIVET, BLIND
-
183706-006 BUMPER, REARBUMPER, REAR
-
193606-994 END CAP, REAR BUMPER (RIGHT)END CAP, REAR BUMPER (RIGHT)
-
193606-995 END CAP, REAR BUMPER (LEFT)END CAP, REAR BUMPER (LEFT)
-
208060-706 RIVET, BLINDRIVET, BLIND
-
210623-562 PLUG, HOLEPLUG, HOLE
-
226611-688 DECAL, REFLECTOR (RIGHT)DECAL, REFLECTOR (RIGHT)
-
226611-689 DECAL, REFLECTOR (LEFT)DECAL, REFLECTOR (LEFT)
-
231706-105 FLAG, SAFETY ASSEMBLY (INC. 24 28)FLAG, SAFETY ASSEMBLY (INC. 24 28)
-
241706-104 FLAG, SAFETYFLAG, SAFETY
-
251606-954 POLE, SAFETY FLAGPOLE, SAFETY FLAG
-
262606-010 MOUNTING, SAFETY FLAG ASSEMBLYMOUNTING, SAFETY FLAG ASSEMBLY
-
278050-247 WASHERWASHER
-
288002-134 SCREW, CAPSCREW, CAP
-
290623-301 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
302706-217 COVER, SPROCKET DRIVENCOVER, SPROCKET DRIVEN
-
313611-754 DECAL, WARNING COVERDECAL, WARNING COVER
-
328020-045 SCREW, CAPSCREW, CAP
-
330630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
348047-366 NUT, LOCKNUT, LOCK
-
350623-677 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
-
360123-788 CABLE TIECABLE TIE
