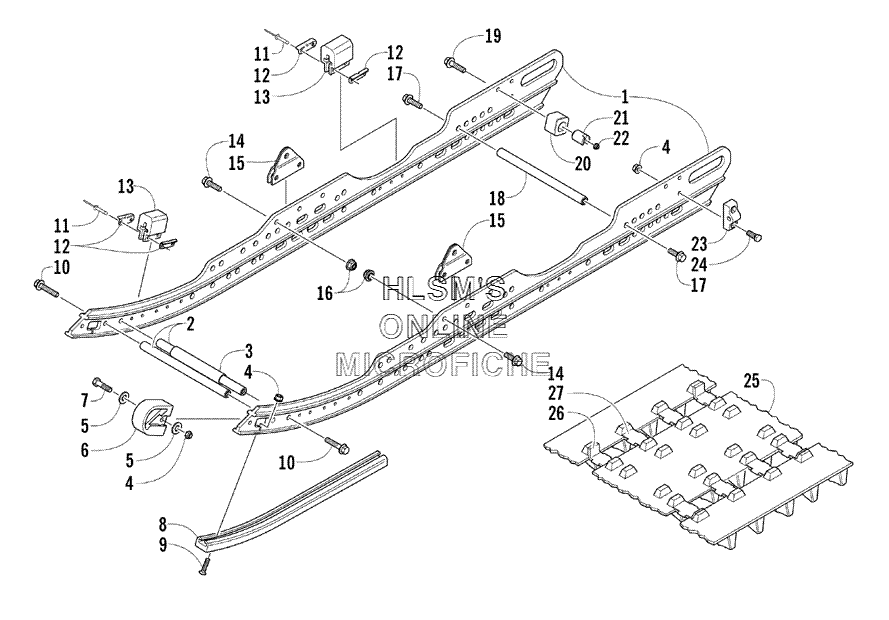

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat T660 Turbo - 2005 года выпуска`
-
№АртикулНазвание
-
12604-646 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
32604-623 SPACERSPACER
-
48047-366 NUT, LOCKNUT, LOCK
-
58050-217 WASHERWASHER
-
62604-507 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78002-043 SCREW, CAPSCREW, CAP
-
82604-257 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
108020-134 SCREW, CAPSCREW, CAP
-
118060-633 RIVETRIVET
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
130604-918 PAD, SHOCKPAD, SHOCK
-
148020-132 SCREW, CAPSCREW, CAP
-
150704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
168048-426 NUT, LOCKNUT, LOCK
-
178020-223 SCREW, CAPSCREW, CAP
-
180604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
198020-226 SCREW, CAPSCREW, CAP
-
202604-545 BLOCK COUPLER ARM (REAR)BLOCK COUPLER ARM (REAR)
-
212604-046 BUSHING, COUPLER BLOCKBUSHING, COUPLER BLOCK
-
228041-486 NUT, LOCKNUT, LOCK
-
230704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
248002-042 SCREW, CAPSCREW, CAP
-
251602-752 TRACK ASSEMBLY (INC. 26, 27)TRACK ASSEMBLY (INC. 26, 27)
-
261602-899 CLIP, GUIDECLIP, GUIDE
-
270602-541 CLIP, WEARCLIP, WEAR
-
-7998-231 SKID FRAME ASSEMBLYSKID FRAME ASSEMBLY
