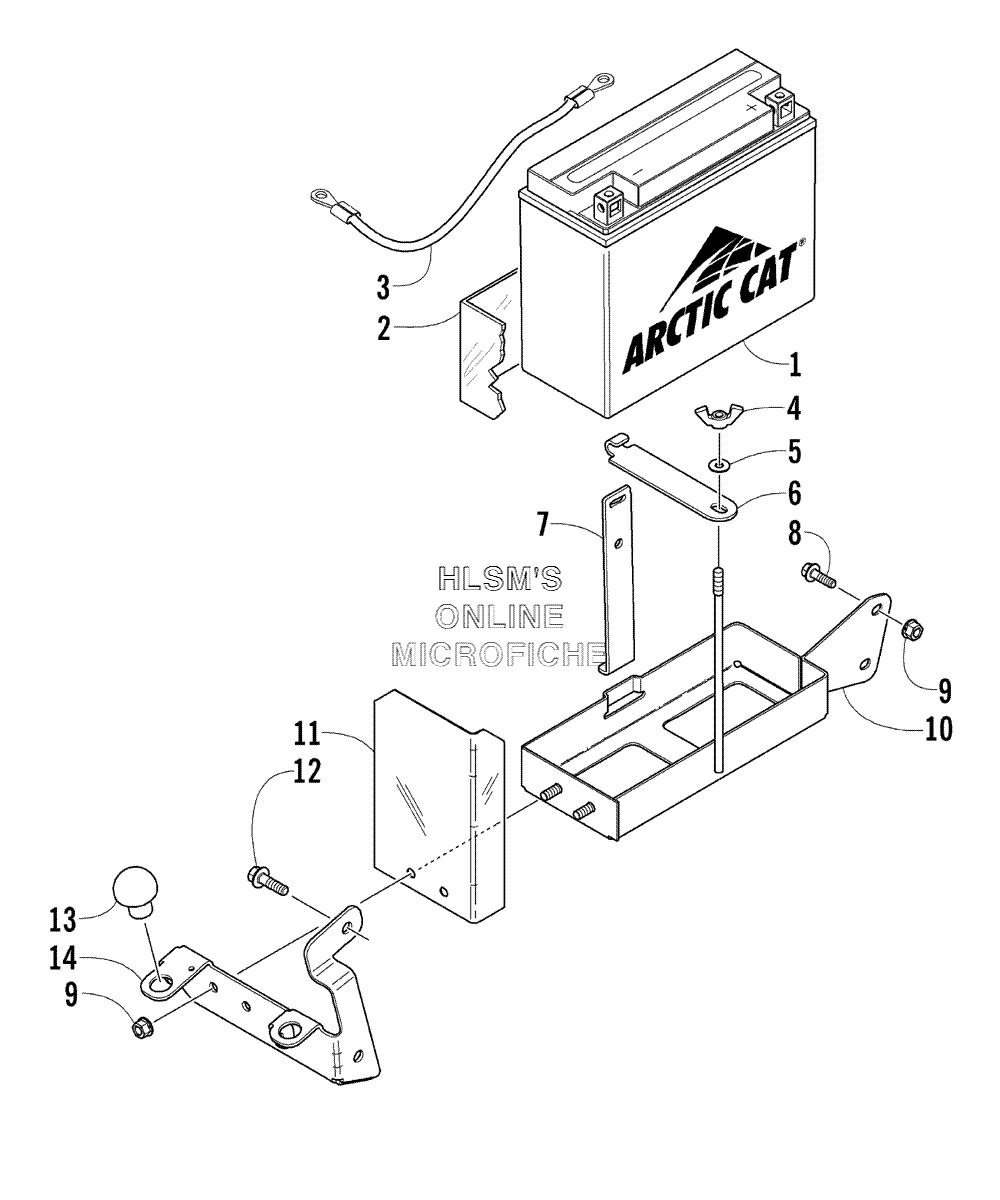

BATTERY ASSEMBLY для Arctic Cat T660 Turbo - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-230 BATTERY (INC. 2)
    BATTERY (INC. 2)
  • 2
    0645-082 WRAP, HEAT, BATTERY
    WRAP, HEAT, BATTERY
  • 3
    0645-476 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 4
    0623-325 NUT, WING
    NUT, WING
  • 5
    8050-217 WASHER
    WASHER
  • 6
    0645-243 STRAP, BATTERY HOLD, DOWN, TOP
    STRAP, BATTERY HOLD, DOWN, TOP
  • 7
    0645-311 STRAP, BATTERY HOLD, DOWN, SIDE
    STRAP, BATTERY HOLD, DOWN, SIDE
  • 8
    8020-039 SCREW, CAP
    SCREW, CAP
  • 9
    8048-366 NUT, LOCK
    NUT, LOCK
  • 10
    0745-213 TRAY, BATTERY
    TRAY, BATTERY
  • 11
    0645-437 SHIELD, HEAT
    SHIELD, HEAT
  • 12
    0623-765 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
  • 14
    0745-214 BRACKET, MOUNTING, BATTERY TRAY
    BRACKET, MOUNTING, BATTERY TRAY
