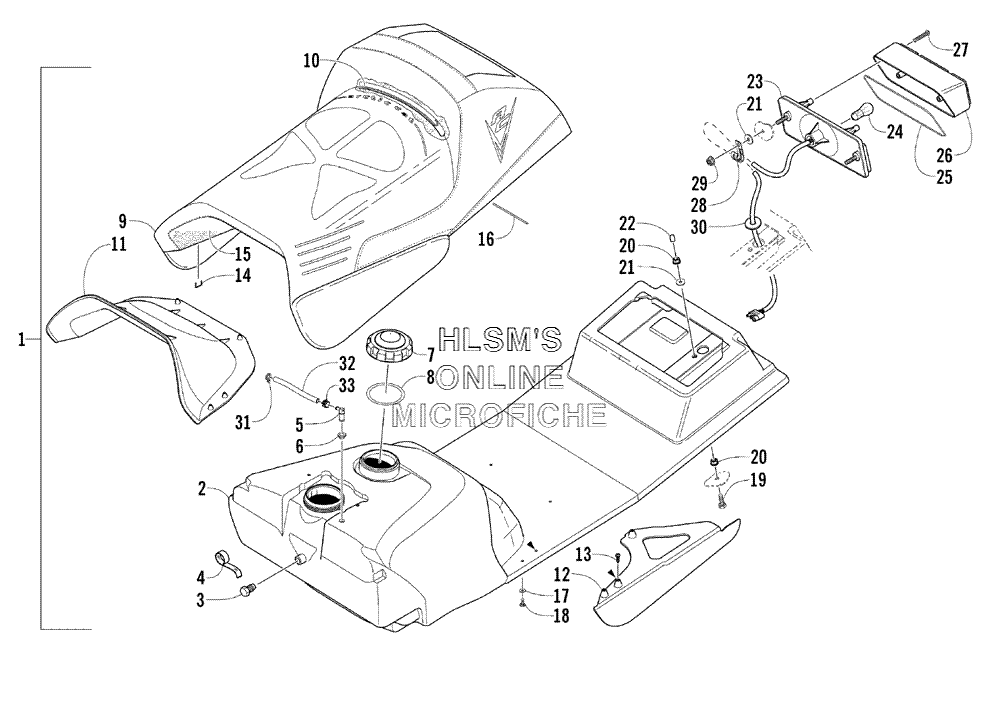

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat T660 Turbo - 2005 года выпуска`
-
№АртикулНазвание
-
11718-830 COMPLETE SEAT ASSEMBLY (INC. 2, 18)COMPLETE SEAT ASSEMBLY (INC. 2, 18)
-
20770-676 TANK, GAS/SEAT, BASE (INC. 3, 8)TANK, GAS/SEAT, BASE (INC. 3, 8)
-
30670-243 PLUG, TANKPLUG, TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
51670-494 VENT, TANKVENT, TANK
-
61670-325 GROMMET, TANKGROMMET, TANK
-
71670-199 CAP, TANK (INC. 8)CAP, TANK (INC. 8)
-
81670-228 SEAL, TANK CAPSEAL, TANK CAP
-
92706-754 COVER, SEAT (INC. 10)COVER, SEAT (INC. 10)
-
103606-363 WIRE, SEATWIRE, SEAT
-
111606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
121606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
121606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
130623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
152706-446 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
162606-943 WIRE, SEATWIRE, SEAT
-
178050-217 WASHERWASHER
-
180623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
198020-042 SCREW, CAPSCREW, CAP
-
208048-366 NUT, LOCKNUT, LOCK
-
210623-184 WASHERWASHER
-
220623-404 CAP, PROTECTORCAP, PROTECTOR
-
230609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
240109-460 BULBBULB
-
250609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
260609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
270609-093 SCREW, RETAININGSCREW, RETAINING
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
290623-038 NUT, LOCKNUT, LOCK
-
300617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
310623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
326101-001 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
326101-009 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
331623-233 CLAMP, HOSECLAMP, HOSE
