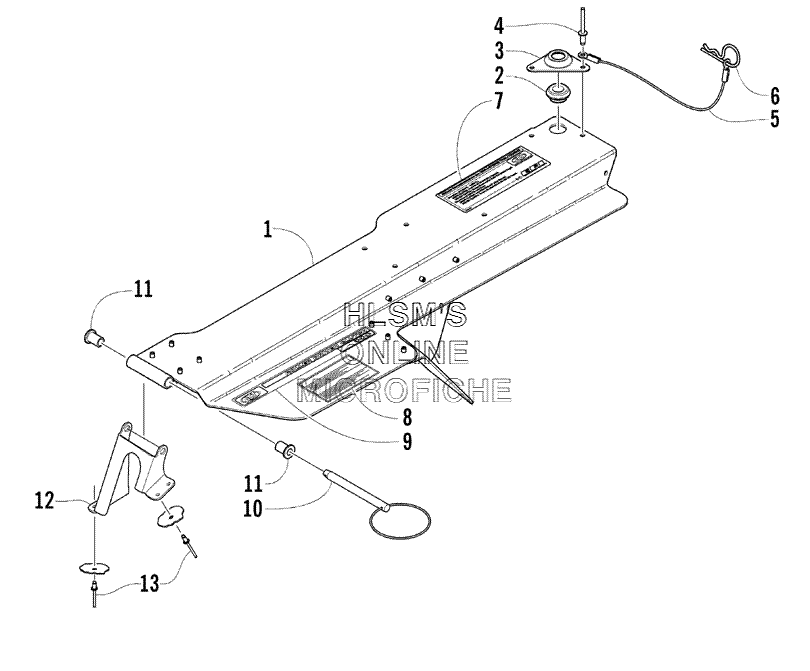

BELT GUARD ASSEMBLY для Arctic Cat T660 Turbo - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-574 BELT GUARD ASSEMBLY (INC. 2, 6)
    BELT GUARD ASSEMBLY (INC. 2, 6)
  • 2
    0607-549 BUSHING, BELT GUARD
    BUSHING, BELT GUARD
  • 3
    0607-550 PLATE, BUSHING, BELT GUARD
    PLATE, BUSHING, BELT GUARD
  • 4
    8060-504 RIVET
    RIVET
  • 5
    0607-447 CABLE
    CABLE
  • 6
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 7
    6611-447 DECAL, CLUTCHING
    DECAL, CLUTCHING
  • 8
    1611-565 DECAL, WARNING, BELT GUARD
    DECAL, WARNING, BELT GUARD
  • 9
    3611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"
    DECAL, "ACT, ROLLER DRIVEN CLUTCH"
  • 10
    1623-012 PIN, BELT GUARD
    PIN, BELT GUARD
  • 11
    0607-094 INSERT, HINGE
    INSERT, HINGE
  • 12
    0707-707 BRACKET, MOUNTING, BELT GUARD
    BRACKET, MOUNTING, BELT GUARD
  • 13
    8061-508 RIVET
    RIVET
