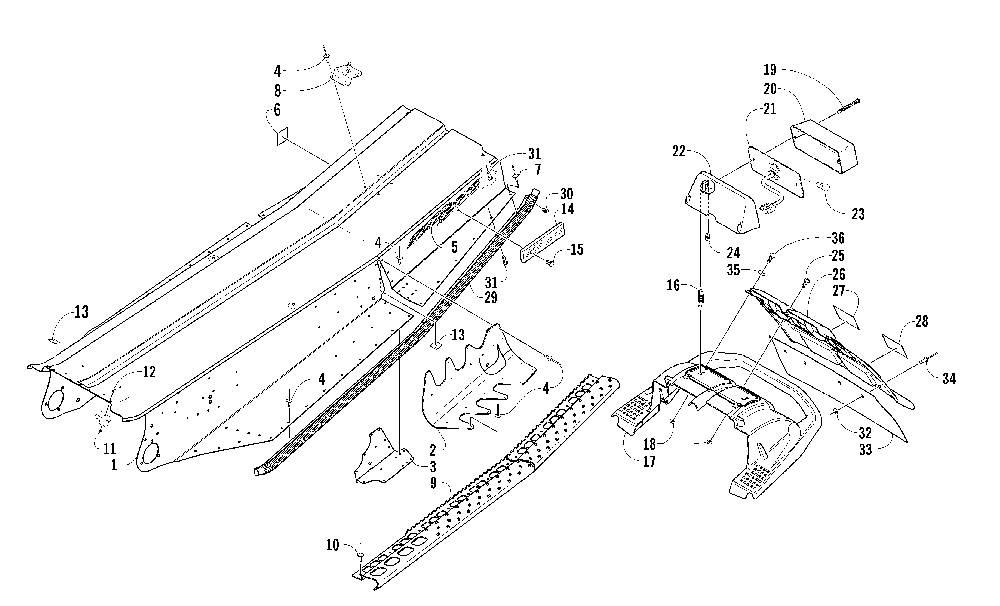

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLIES для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
11718-455 TUNNEL ASSEMBLY (INC. 2, 4)TUNNEL ASSEMBLY (INC. 2, 4)
-
22606-616 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
22606-617 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
32706-234 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-235 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
40623-806 RIVETRIVET
-
40123-418 RIVETRIVET
-
48060-506 RIVETRIVET
-
55611-196 DECAL, TUNNELDECAL, TUNNEL
-
60411-053 DECAL, CEDECAL, CE
-
78060-484 RIVETRIVET
-
82706-241 PLATE, MOUNTING, SEAT, BASEPLATE, MOUNTING, SEAT, BASE
-
90641-592 PLATE, GRIP (RIGHT)PLATE, GRIP (RIGHT)
-
90641-591 PLATE, GRIP (LEFT)PLATE, GRIP (LEFT)
-
108060-488 RIVETRIVET
-
118040-246 NUT, LOCKNUT, LOCK
-
128017-399 SCREW, MACHINESCREW, MACHINE
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
140606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
150623-269 CLIP, RETAININGCLIP, RETAINING
-
161612-178 SPRINGSPRING
-
172706-441 BUMPER (REAR)BUMPER (REAR)
-
188041-366 NUT, LOCKNUT, LOCK
-
190623-204 SCREW, MACHINESCREW, MACHINE
-
200609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
210609-230 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
222706-442 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
230109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
241623-023 NUT, SPEEDNUT, SPEED
-
258017-579 SCREW, MACHINESCREW, MACHINE
-
262706-454 SNOWFLAP W/DECAL (BLACK)SNOWFLAP W/DECAL (BLACK)
-
271611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
281611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
291706-316 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
291706-317 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
301623-061 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
311623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
328050-157 WASHERWASHER
-
333606-226 EXTENSION, SNOWFLAPEXTENSION, SNOWFLAP
-
348061-628 RIVETRIVET
-
350623-875 WASHERWASHER
-
368017-580 SCREW, MACHINESCREW, MACHINE
