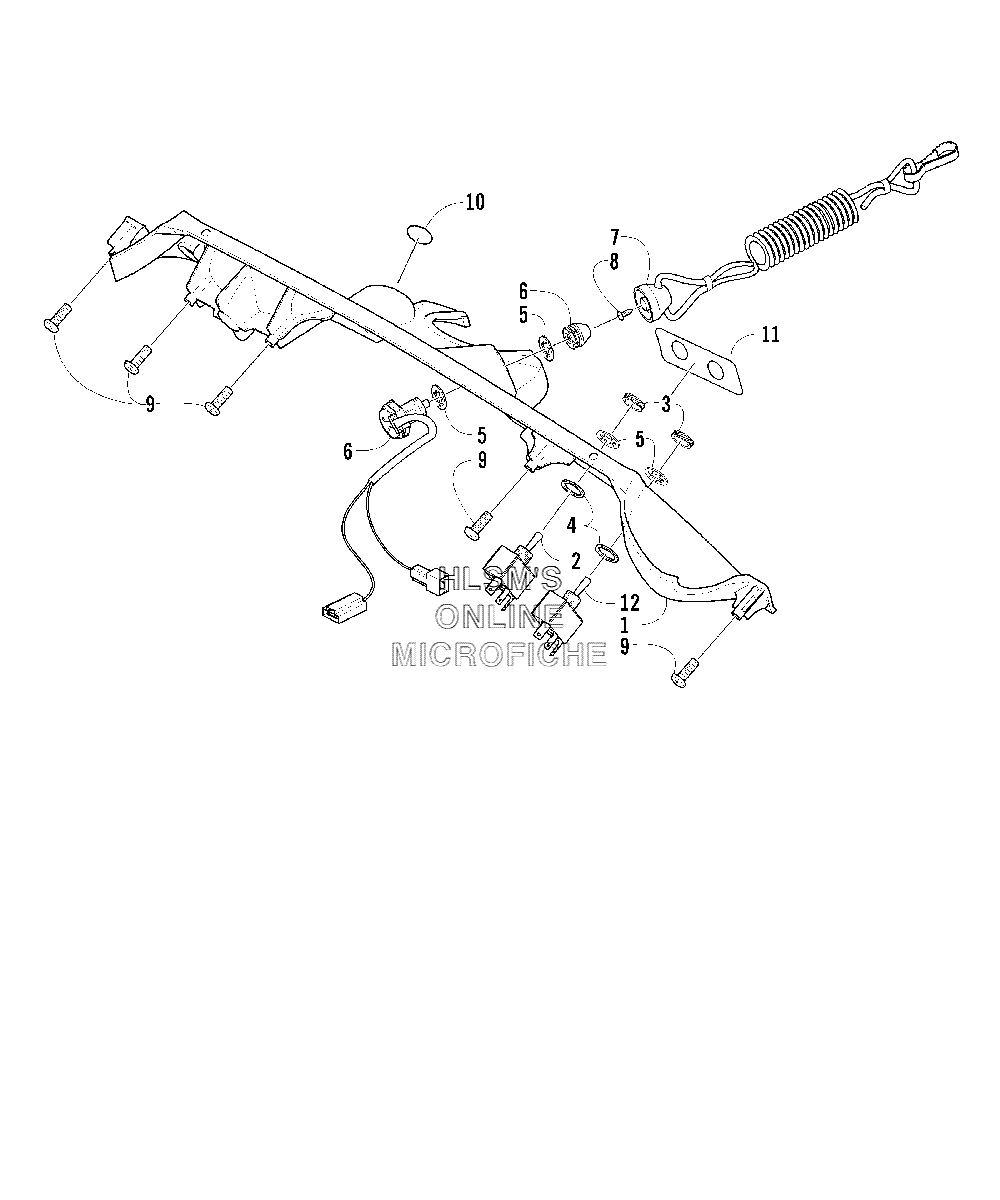

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-960 CONSOLE
    CONSOLE
  • 2
    0609-233 SWITCH, HIGH/LOW BEAM (INC. ONE NO. 3)
    SWITCH, HIGH/LOW BEAM (INC. ONE NO. 3)
  • 3
    0609-220 NUT, KNURLED
    NUT, KNURLED
  • 4
    0623-153 WASHER, NYLON
    WASHER, NYLON
  • 5
    0123-985 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 6
    0709-071 TETHER SWITCH ASSEMBLY (INC. 7, 8)
    TETHER SWITCH ASSEMBLY (INC. 7, 8)
  • 7
    0709-055 TETHER ASSEMBLY (INC. 8)
    TETHER ASSEMBLY (INC. 8)
  • 8
    0623-338 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    5611-556 DECAL, CONSOLE
    DECAL, CONSOLE
  • 11
    5611-198 DECAL, SWITCH
    DECAL, SWITCH
  • 12
    0609-187 SWITCH, HANDWARMER/THUMBWARMER (INC. ONE NO. 3)
    SWITCH, HANDWARMER/THUMBWARMER (INC. ONE NO. 3)
