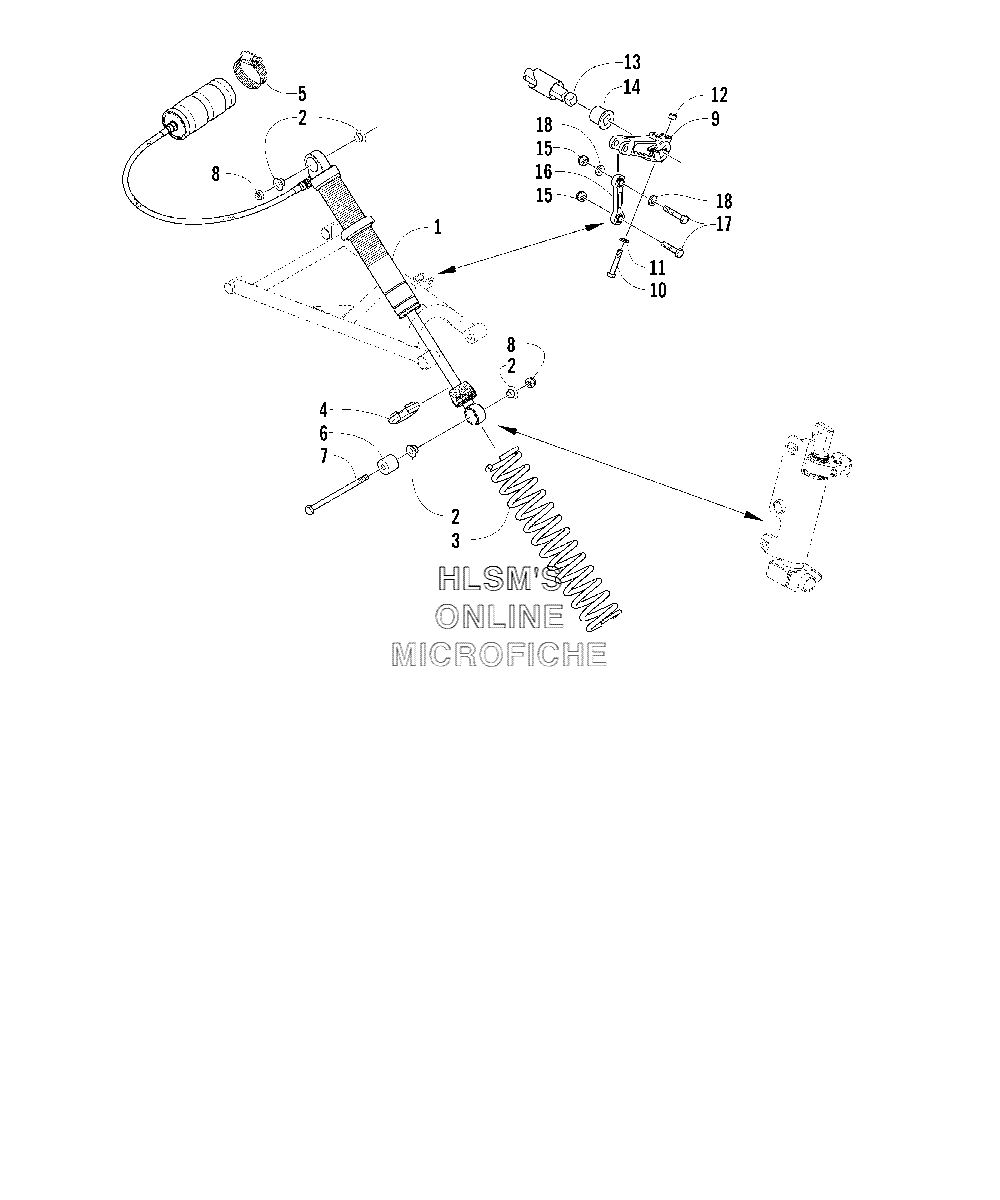

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
11703-260 SHOCK, SKI (RIGHT)SHOCK, SKI (RIGHT)
-
11703-261 SHOCK, SKI (LEFT)SHOCK, SKI (LEFT)
-
21603-423 SPACERSPACER
-
31703-276 SPRING, COMPRESSION (YELLOW)SPRING, COMPRESSION (YELLOW)
-
41603-890 RETAINER, SPRINGRETAINER, SPRING
-
50214-025 CLAMPCLAMP
-
60603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
78002-232 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
90603-917 ARM, SWAY BARARM, SWAY BAR
-
108002-136 SCREW, CAPSCREW, CAP
-
118050-242 WASHERWASHER
-
128041-426 NUT, LOCKNUT, LOCK
-
131703-143 SWAY BAR, 0.375 IN.SWAY BAR, 0.375 IN.
-
131703-146 SWAY BAR, 0.438 IN.SWAY BAR, 0.438 IN.
-
131703-144 SWAY BAR, 0.500 IN.SWAY BAR, 0.500 IN.
-
131703-145 SWAY BAR, 0.625 IN.SWAY BAR, 0.625 IN.
-
141603-211 BEARINGBEARING
-
158041-486 NUT, LOCKNUT, LOCK
-
161603-414 LINK, SWAY BARLINK, SWAY BAR
-
178002-226 SCREW, CAPSCREW, CAP
-
188050-272 WASHERWASHER
