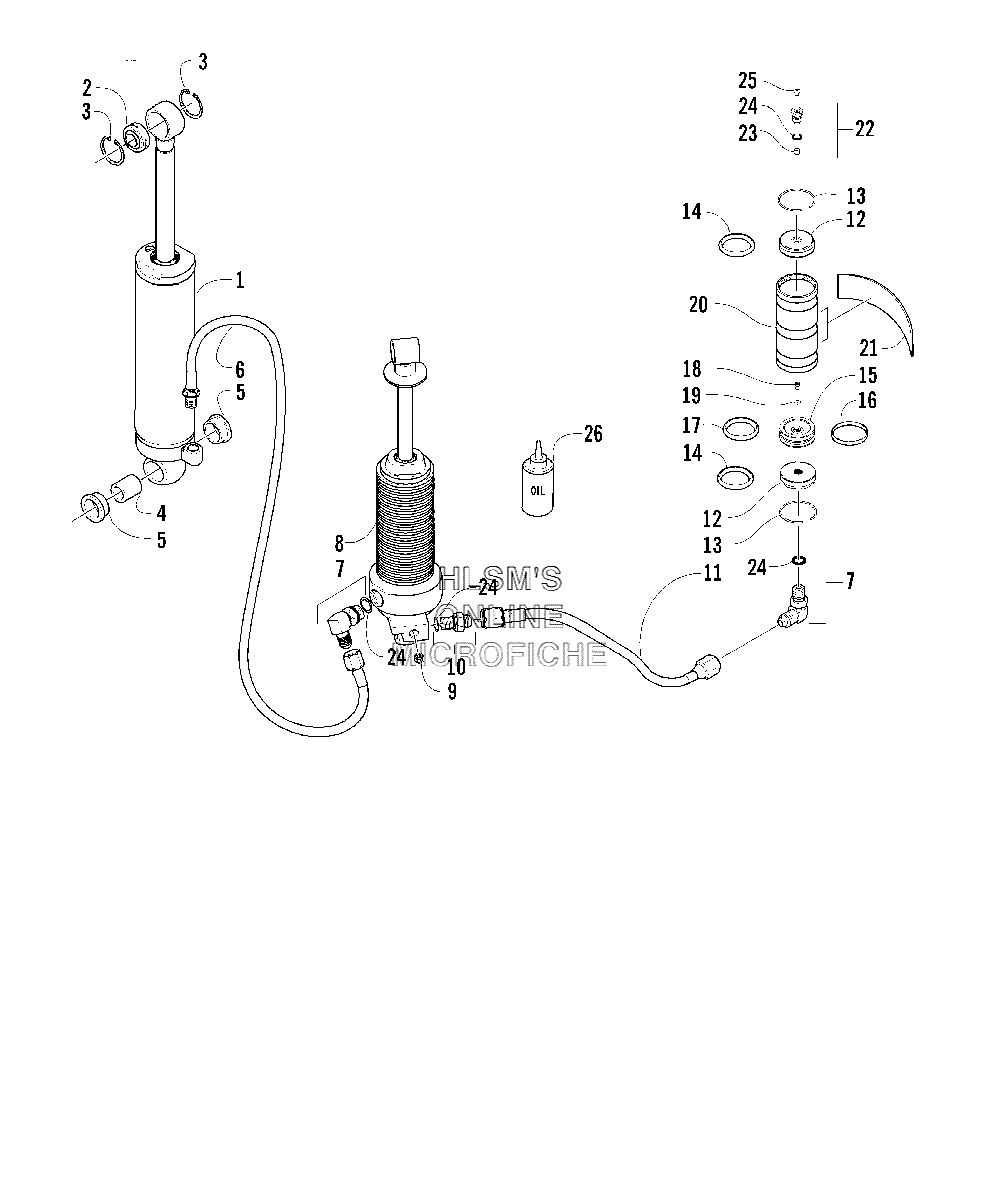

REAR SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0704-961 COMPLETE REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
    COMPLETE REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
  • 1
    0704-959 SHOCK ABSORBER ARM (REAR)
    SHOCK ABSORBER ARM (REAR)
  • 2
    1604-664 BEARING, SHOCK EYELET
    BEARING, SHOCK EYELET
  • 3
    0623-951 RING, RETAINING
    RING, RETAINING
  • 4
    2604-223 SLEEVE ARM REAR SHOCK
    SLEEVE ARM REAR SHOCK
  • 5
    1604-222 BUSHING ARM REAR SHOCK
    BUSHING ARM REAR SHOCK
  • 6
    2604-518 HOSE ARM FRONT SHOCK/REAR ARM SHOCK
    HOSE ARM FRONT SHOCK/REAR ARM SHOCK
  • 7
    1603-942 FITTING, ELBOW (INC. TWO NO. 24)
    FITTING, ELBOW (INC. TWO NO. 24)
  • 8
    0704-960 SHOCK ABSORBER ARM (FRONT)
    SHOCK ABSORBER ARM (FRONT)
  • 9
    2604-207 PLUG, BRASS
    PLUG, BRASS
  • 10
    1603-933 FITTING, ADAPTER (INC. ONE NO. 24)
    FITTING, ADAPTER (INC. ONE NO. 24)
  • 11
    2604-210 HOSE, SHOCK/RESERVOIR
    HOSE, SHOCK/RESERVOIR
  • 12
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 13
    0604-992 RETAINER, END CAP
    RETAINER, END CAP
  • 14
    0603-671 O-RING
    O-RING
  • 15
    2604-517 PISTON, FLOATING
    PISTON, FLOATING
  • 16
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 17
    1603-236 O-RING
    O-RING
  • 18
    1604-316 SCREW, RELIEF (INC. 19)
    SCREW, RELIEF (INC. 19)
  • 19
    1604-425 O-RING
    O-RING
  • 20
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 21
    1603-932 DECAL, SHOCK
    DECAL, SHOCK
  • 22
    0703-341 VALVE, PRESSURE ASSEMBLY (INC. 23 AND ONE NO. 24)
    VALVE, PRESSURE ASSEMBLY (INC. 23 AND ONE NO. 24)
  • 24
    1604-318 O-RING
    O-RING
  • 25
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    2639-905 OIL, SHOCK, 6 QT CASE
    OIL, SHOCK, 6 QT CASE
