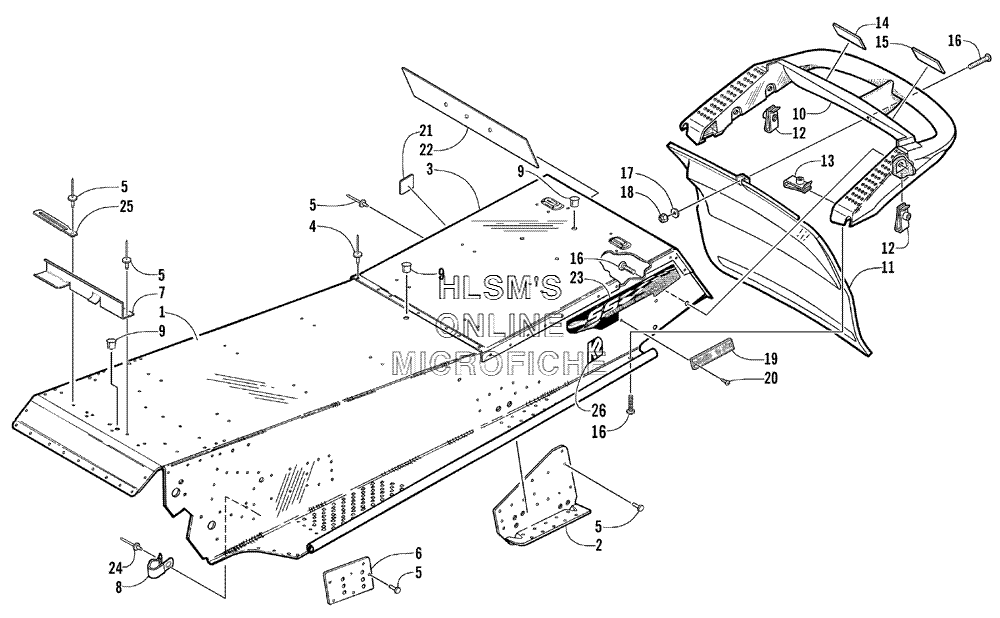

TUNNEL AND REAR BUMPER для Arctic Cat Z 570 SS - 2002 года выпуска`
-
№АртикулНазвание
-
11718-173 TUNNEL ASSY. (INC. 2, 5)TUNNEL ASSY. (INC. 2, 5)
-
21706-078 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
21706-079 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
31606-497 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
48060-704 RIVETRIVET
-
50623-072 RIVET, SOLIDRIVET, SOLID
-
50123-418 RIVET, SOLIDRIVET, SOLID
-
58060-506 RIVETRIVET
-
60616-965 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
70607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
81623-015 CLAMP, DOUBLE TUBECLAMP, DOUBLE TUBE
-
90623-562 PLUG, HOLEPLUG, HOLE
-
101606-200 BUMPER (REAR)BUMPER (REAR)
-
111606-202 SNOWFLAPSNOWFLAP
-
111606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
120623-771 NUT, UNUT, U
-
130623-427 NUT, UNUT, U
-
141611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
151611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
168017-580 SCREW, MACHINESCREW, MACHINE
-
178050-217 WASHERWASHER
-
188040-366 NUT, LOCKNUT, LOCK
-
190606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
200623-269 CLIP, RETAININGCLIP, RETAINING
-
210411-053 DECAL, CEDECAL, CE
-
224611-421 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
-
234611-376 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
234611-377 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
240623-778 RIVETRIVET
-
253002-964 CLAMP, WIRECLAMP, WIRE
-
264611-568 DECAL, "K2"DECAL, "K2"
