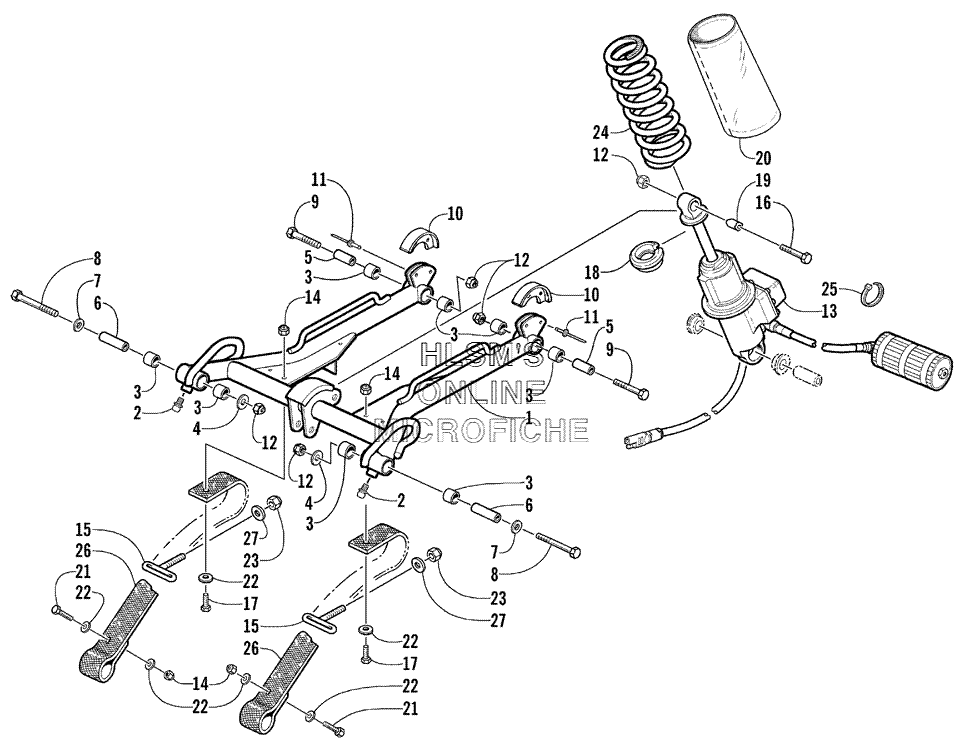

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat Z 570 SS - 2002 года выпуска`
-
№АртикулНазвание
-
10704-543 ARM SUSPENSION (FRONT) (INC. 2, 3)ARM SUSPENSION (FRONT) (INC. 2, 3)
-
20623-922 FITTING, GREASEFITTING, GREASE
-
30604-889 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
40114-197 WASHERWASHER
-
50104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
61604-162 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
70623-044 WASHERWASHER
-
88002-230 SCREW, CAPSCREW, CAP
-
98002-228 SCREW, CAPSCREW, CAP
-
100604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
118060-710 RIVETRIVET
-
128040-486 NUT, LOCKNUT, LOCK
-
130704-758 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
148040-366 NUT, LOCKNUT, LOCK
-
151604-583 ADJUSTER ARM (FRONT)ADJUSTER ARM (FRONT)
-
168002-226 SCREW, CAPSCREW, CAP
-
178002-040 SCREW, CAPSCREW, CAP
-
181604-629 RETAINER, SPRINGRETAINER, SPRING
-
190603-030 AXLE, SERRATEDAXLE, SERRATED
-
201604-784 COVER, SHOCKCOVER, SHOCK
-
218002-042 SCREW, CAPSCREW, CAP
-
220623-184 WASHERWASHER
-
238040-426 NUT, LOCKNUT, LOCK
-
241604-788 SPRING, COMPRESSIONSPRING, COMPRESSION
-
250123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
261604-483 STRAP, LIMITERSTRAP, LIMITER
-
278050-247 WASHERWASHER
