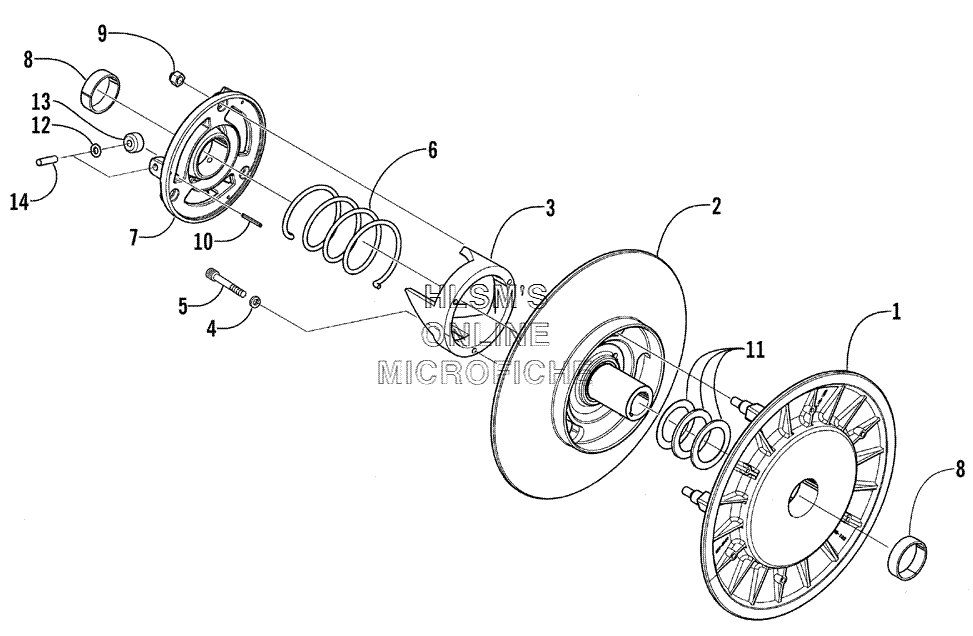

DRIVEN CLUTCH для Arctic Cat Z 570 SS - 2002 года выпуска`
-
№АртикулНазвание
-
-0726-088 CLUTCH, DRIVEN ASSY.CLUTCH, DRIVEN ASSY.
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 8)SHEAVE, MOVABLE (INC. ONE NO. 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-014 BRACKET, TORQUE, 49°BRACKET, TORQUE, 49°
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60148-227 SPRING, DRIVEN CLUTCH (YELLOW)SPRING, DRIVEN CLUTCH (YELLOW)
-
70748-018 PLATE, ROLLER, ASSY. (INC. 10, 12, 14, AND ONE NO. 8)PLATE, ROLLER, ASSY. (INC. 10, 12, 14, AND ONE NO. 8)
-
80648-009 BEARINGBEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
