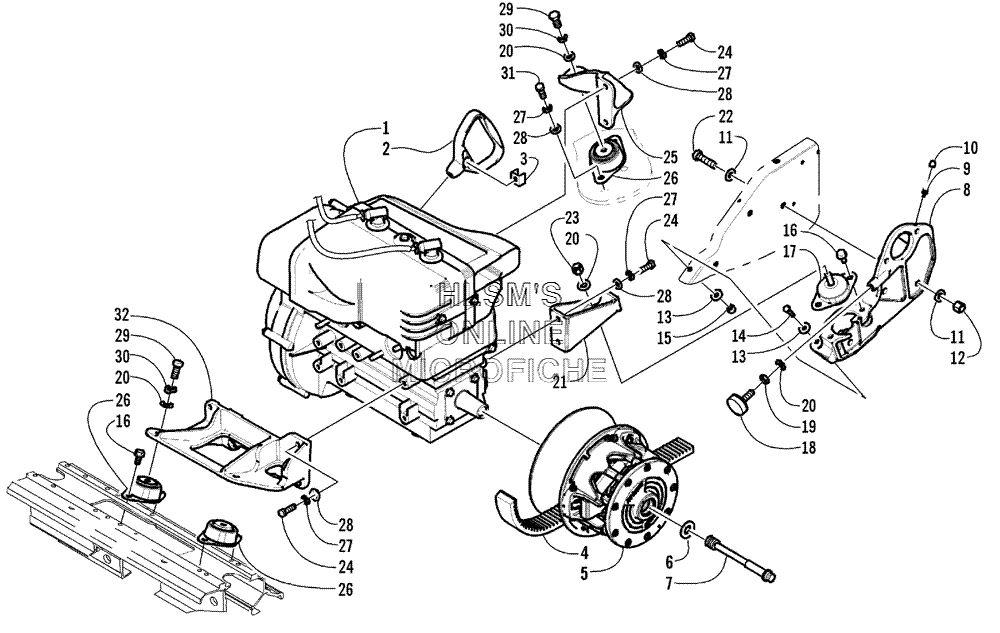

ENGINE AND RELATED PARTS для Arctic Cat Z 570 SS - 2002 года выпуска`
-
№АртикулНазвание
-
10662-303 ENGINE, AA56A1ENGINE, AA56A1
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40627-021 BELT, DRIVEBELT, DRIVE
-
50725-357 CLUTCH, DRIVECLUTCH, DRIVE
-
60623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
70623-804 BOLT, CLUTCHBOLT, CLUTCH
-
80708-139 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 9, 10)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 9, 10)
-
90623-899 FITTING, GREASEFITTING, GREASE
-
100623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
110623-044 WASHERWASHER
-
120623-026 NUT, LOCKNUT, LOCK
-
138050-222 WASHERWASHER
-
148002-041 SCREW, CAPSCREW, CAP
-
158040-366 NUT, LOCKNUT, LOCK
-
160623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170708-145 MOUNT, ENGINE, ASSY.MOUNT, ENGINE, ASSY.
-
180608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
190123-191 NUTNUT
-
208050-272 WASHERWASHER
-
210708-133 BRACKET, MOUNTING, ENGINE (LEFT) (REAR)BRACKET, MOUNTING, ENGINE (LEFT) (REAR)
-
228002-225 SCREW, CAPSCREW, CAP
-
238040-486 NUT, LOCKNUT, LOCK
-
248002-132 SCREW, CAPSCREW, CAP
-
250708-132 BRACKET, MOUNTING, ENGINE (RIGHT) (REAR)BRACKET, MOUNTING, ENGINE (RIGHT) (REAR)
-
260608-347 MOUNT, ENGINEMOUNT, ENGINE
-
278051-247 WASHER, LOCKWASHER, LOCK
-
288050-247 WASHERWASHER
-
298002-221 SCREW, CAPSCREW, CAP
-
308051-277 WASHER, LOCKWASHER, LOCK
-
318002-131 SCREW, CAPSCREW, CAP
-
320708-131 BRACKET, MOUNTING, ENGINE (FRONT)BRACKET, MOUNTING, ENGINE (FRONT)
