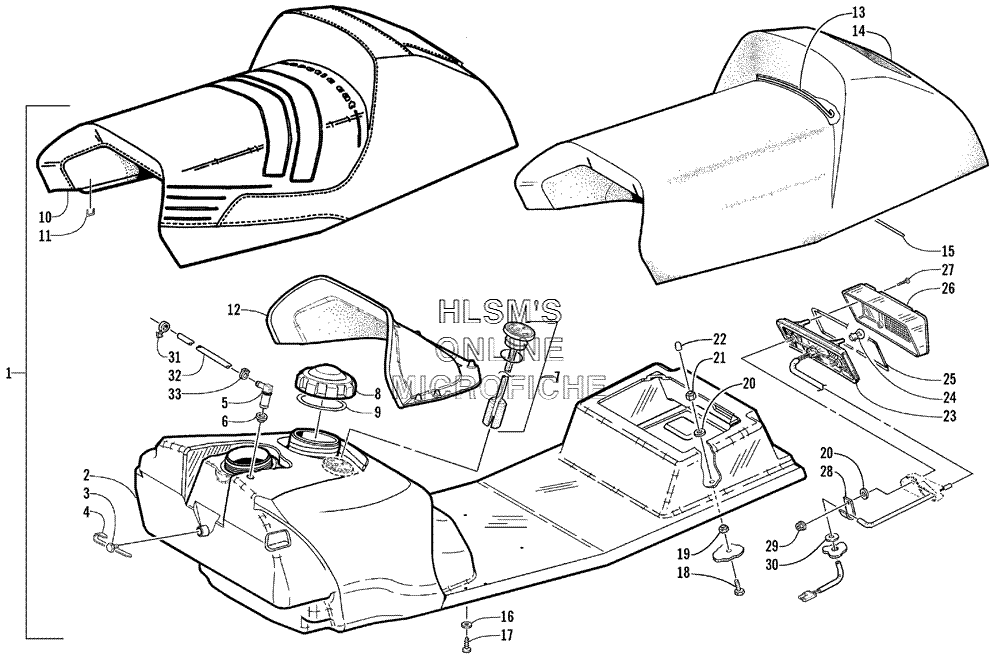

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска`
-
№АртикулНазвание
-
11718-213 COMPLETE SEAT ASSY. (INC. 2, 17)COMPLETE SEAT ASSY. (INC. 2, 17)
-
20770-558 TANK, GAS/SEAT, BASE (INC. 3, 9)TANK, GAS/SEAT, BASE (INC. 3, 9)
-
30670-243 PLUG, TANKPLUG, TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
51670-324 VENT, GAS TANKVENT, GAS TANK
-
61670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
71670-241 GAUGE, FUEL, ASSY. W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSY. W/GASKET (PRESS, FIT)
-
81670-199 CAP, GAS TANK (INC. 9)CAP, GAS TANK (INC. 9)
-
91670-228 SEAL, TANK CAPSEAL, TANK CAP
-
101706-964 COVER, SEATCOVER, SEAT
-
110624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
121606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
131606-150 WIRE, SEATWIRE, SEAT
-
141706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
150606-057 WIRE, SEATWIRE, SEAT
-
168050-217 WASHERWASHER
-
170623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
188002-042 SCREW, CAPSCREW, CAP
-
198041-366 NUT, LOCKNUT, LOCK
-
200623-184 WASHERWASHER
-
218040-366 NUT, LOCKNUT, LOCK
-
220623-404 CAP, PROTECTORCAP, PROTECTOR
-
230609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
240109-460 BULBBULB
-
250609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
260609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
270609-093 SCREW, RETAININGSCREW, RETAINING
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
290623-038 NUT, LOCKNUT, LOCK
-
300617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
310623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
320610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
320610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
330623-063 CLAMP, HOSECLAMP, HOSE
