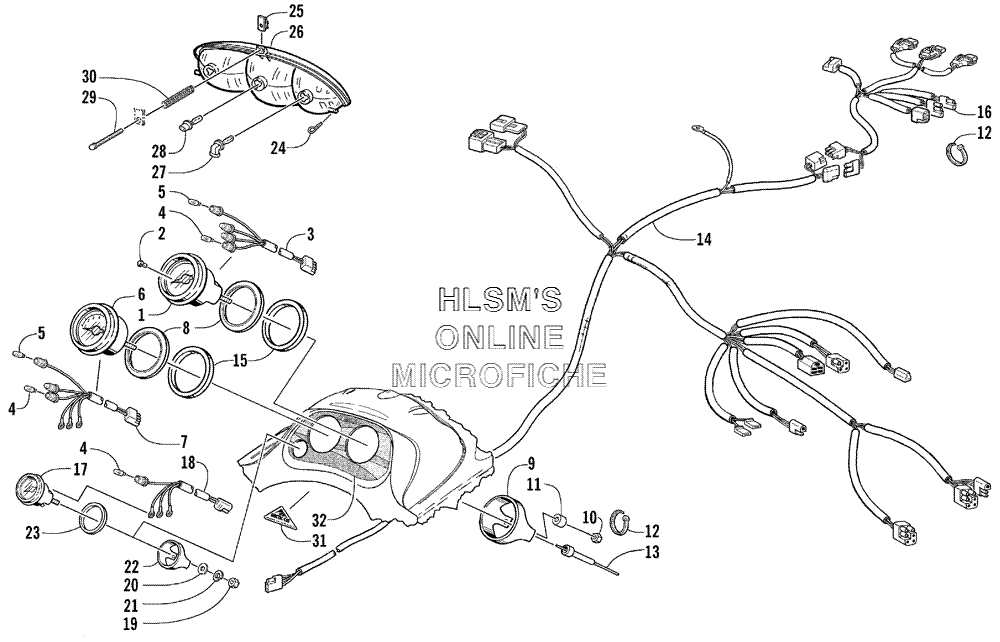

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска`
-
№АртикулНазвание
-
10620-265 SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-266 HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-259 TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)
-
70620-262 HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
100623-038 NUT W/WASHERNUT W/WASHER
-
111623-041 SPACERSPACER
-
120123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
130620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
140686-758 HARNESS, MAINHARNESS, MAIN
-
152606-388 SPACER, GAUGESPACER, GAUGE
-
160686-759 HARNESS, HOODHARNESS, HOOD
-
170620-260 GAUGE, TEMPERATURE (INC. 18, 21)GAUGE, TEMPERATURE (INC. 18, 21)
-
180620-274 HARNESS, TEMPERATURE GAUGE (INC. ONE NO. 4)HARNESS, TEMPERATURE GAUGE (INC. ONE NO. 4)
-
190623-839 NUTNUT
-
208050-122 WASHERWASHER
-
218051-122 WASHER, LOCKWASHER, LOCK
-
220620-138 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
230620-139 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
240623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
250623-757 NUT, UNUT, U
-
260609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
270609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
280609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
290623-467 SCREW, THUMBSCREW, THUMB
-
300623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
313611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
324611-096 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
