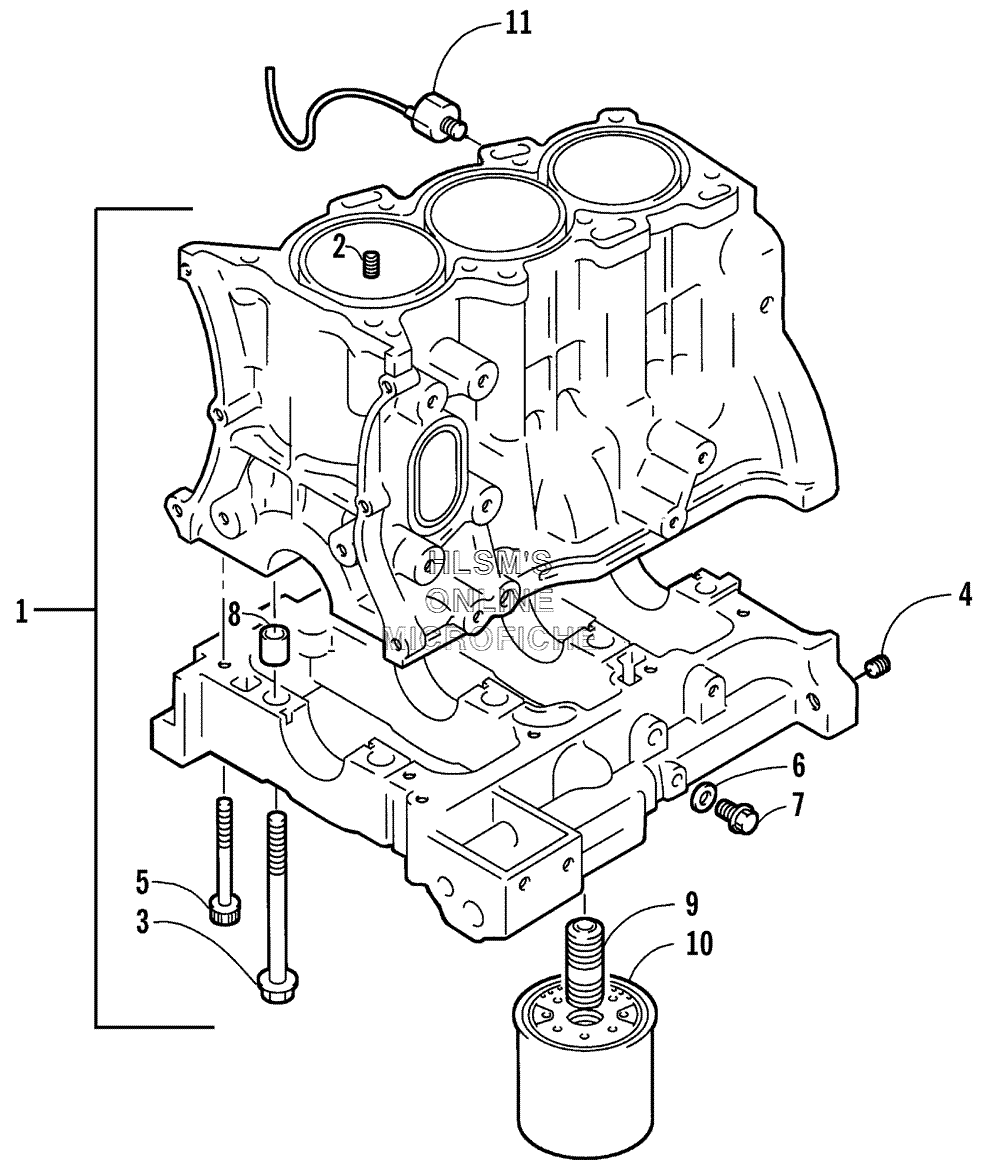

CYLINDER BLOCK/BASE ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска
-
№АртикулНазвание
-
13006-139 CYLINDER BLOCK/BASE ASSY. (INC. 2, 8)CYLINDER BLOCK/BASE ASSY. (INC. 2, 8)
-
23006-131 PLUG, OIL VENTURIPLUG, OIL VENTURI
-
33006-133 BOLTBOLT
-
43006-116 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
53006-141 BOLTBOLT
-
63006-112 GASKETGASKET
-
73006-117 PLUG, OIL DRAINPLUG, OIL DRAIN
-
83423-088 PIN, DOWELPIN, DOWEL
-
93006-140 STAND, OIL FILTERSTAND, OIL FILTER
-
103005-948 FILTER, OIL, ASSY.FILTER, OIL, ASSY.
-
113006-240 SENSOR, KNOCK, ASSY.SENSOR, KNOCK, ASSY.
