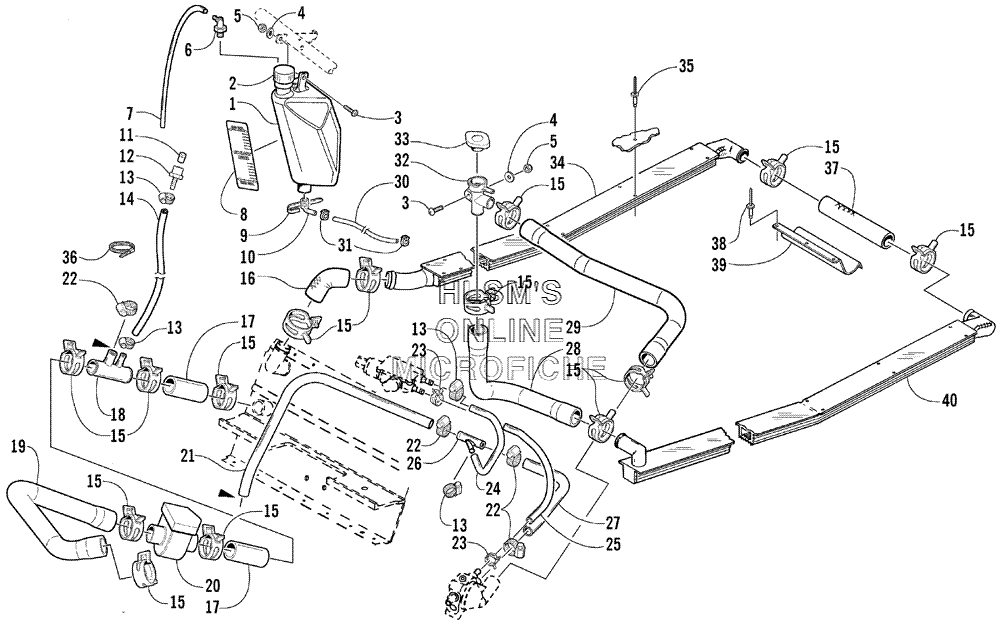

COOLING ASSY. для Arctic Cat 4-STROKE TRAIL - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-246 TANK, COOLANT
    TANK, COOLANT
  • 2
    0670-035 CAP, TANK
    CAP, TANK
  • 3
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    8050-217 WASHER
    WASHER
  • 5
    8040-366 NUT, LOCK
    NUT, LOCK
  • 6
    0670-242 FITTING, VENT
    FITTING, VENT
  • 7
    0610-010 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 8
    4611-093 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 9
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
  • 10
    0670-075 FITTING, ELBOW
    FITTING, ELBOW
  • 11
    0623-976 PLUG, ADAPTER
    PLUG, ADAPTER
  • 12
    1670-303 ADAPTER, FITTING
    ADAPTER, FITTING
  • 13
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0610-075 HOSE, COOLANT, DRAIN (10 FT)
    HOSE, COOLANT, DRAIN (10 FT)
  • 15
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
    HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
  • 17
    0610-457 HOSE, COOLANT, T, FITTING
    HOSE, COOLANT, T, FITTING
  • 18
    2606-502 T, FITTING, DOUBLE
    T, FITTING, DOUBLE
  • 19
    0610-453 HOSE, COOLANT, HEATER/ENGINE
    HOSE, COOLANT, HEATER/ENGINE
  • 20
    0609-182 HEATER, INNERLINE
    HEATER, INNERLINE
  • 21
    0610-486 HOSE, COOLANT, Y, FITTING/T, FITTING
    HOSE, COOLANT, Y, FITTING/T, FITTING
  • 22
    0623-028 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    3006-128 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0610-487 HOSE, COOLANT, THROTTLE BODY/Y, FITTING
    HOSE, COOLANT, THROTTLE BODY/Y, FITTING
  • 25
    3006-235 HOSE, COOLANT, THROTTLE BODY/THERMOSTAT
    HOSE, COOLANT, THROTTLE BODY/THERMOSTAT
  • 26
    2606-625 Y, FITTING
    Y, FITTING
  • 27
    0610-485 HOSE, COOLANT, THERMOSTAT/Y, FITTING
    HOSE, COOLANT, THERMOSTAT/Y, FITTING
  • 28
    0610-452 HOSE, FILLER NECK/LEFT HEAT EXCHANGER
    HOSE, FILLER NECK/LEFT HEAT EXCHANGER
  • 29
    0610-451 HOSE, COOLANT, FILLER NECK/ENGINE
    HOSE, COOLANT, FILLER NECK/ENGINE
  • 30
    0610-015 HOSE (100 FT)
    HOSE (100 FT)
  • 30
    0610-016 HOSE (25 FT)
    HOSE (25 FT)
  • 31
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 32
    0606-267 NECK, FILLER
    NECK, FILLER
  • 33
    2606-284 CAP, FILLER NECK
    CAP, FILLER NECK
  • 34
    0716-920 HEAT EXCHANGER TUBE (RIGHT)
    HEAT EXCHANGER TUBE (RIGHT)
  • 35
    8060-706 RIVET
    RIVET
  • 36
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 37
    0610-215 HOSE, COOLANT (REAR)
    HOSE, COOLANT (REAR)
  • 38
    8060-504 RIVET
    RIVET
  • 39
    0616-810 GUARD, HOSE
    GUARD, HOSE
  • 40
    0716-921 HEAT EXCHANGER TUBE (LEFT)
    HEAT EXCHANGER TUBE (LEFT)
