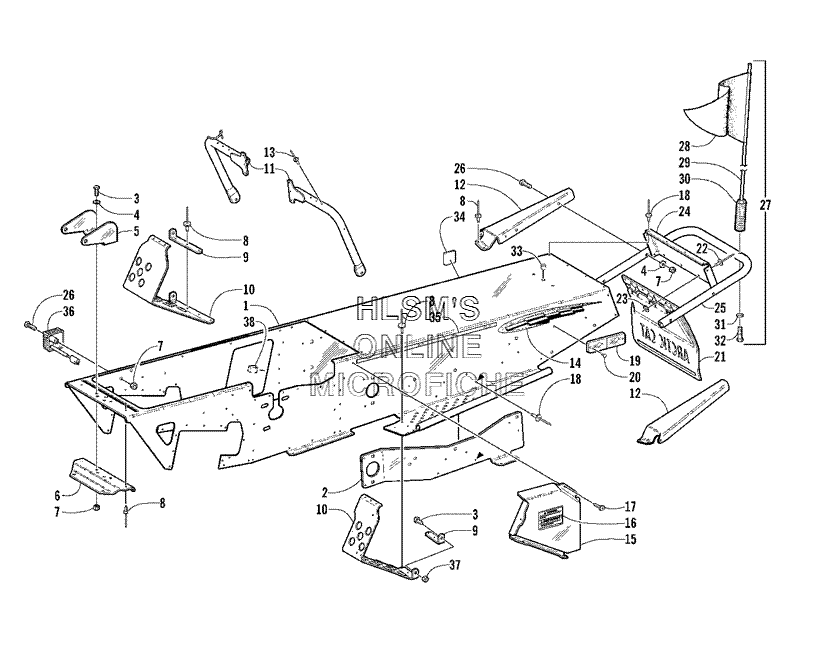

CHASSIS- FOOTREST- AND REAR BUMPER ASSEMBLY для Arctic Cat Z 120 - 2001 года выпуска`
-
№АртикулНазвание
-
10718-996 TUNNEL ASSEMBLY (INC 2)TUNNEL ASSEMBLY (INC 2)
-
22606-218 PLATE, REINFORCEMENT - TUNNEL - RIGHTPLATE, REINFORCEMENT - TUNNEL - RIGHT
-
22606-219 PLATE, REINFORCEMENT - TUNNEL - LEFTPLATE, REINFORCEMENT - TUNNEL - LEFT
-
38002-040 SCREW, CAPSCREW, CAP
-
48050-217 WASHERWASHER
-
52606-009 BRACKET, MOUNTING - HOOD - LOWERBRACKET, MOUNTING - HOOD - LOWER
-
62606-019 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
78040-366 NUT, LOCKNUT, LOCK
-
88060-484 RIVETRIVET
-
91606-826 BRACKET, SUPPORT - FOOTREST - RIGHTBRACKET, SUPPORT - FOOTREST - RIGHT
-
91606-827 BRACKET, SUPPORT - FOOTREST - LEFTBRACKET, SUPPORT - FOOTREST - LEFT
-
101606-784 FOOTREST - RIGHTFOOTREST - RIGHT
-
101606-785 FOOTREST - LEFTFOOTREST - LEFT
-
111706-283 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
111706-041 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
121606-816 END CAP, REAR BUMPER - RIGHTEND CAP, REAR BUMPER - RIGHT
-
121606-817 END CAP, REAR BUMPER - LEFTEND CAP, REAR BUMPER - LEFT
-
138060-486 RIVETRIVET
-
143611-880 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
143611-881 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
151606-786 COVER, SPROCKET - DRIVENCOVER, SPROCKET - DRIVEN
-
163611-754 DECAL, WARNING - COVERDECAL, WARNING - COVER
-
170623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180123-418 RIVETRIVET
-
190606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
200623-269 CLIP, RETAININGCLIP, RETAINING
-
211606-750 SNOWFLAPSNOWFLAP
-
228060-628 RIVETRIVET
-
230123-802 WASHERWASHER
-
241606-740 PLATE, COVER - TUNNELPLATE, COVER - TUNNEL
-
251706-018 BUMPER, REARBUMPER, REAR
-
268002-044 SCREW, CAPSCREW, CAP
-
271706-105 FLAG, SAFETY - ASSEMBLY (INC 28-32)FLAG, SAFETY - ASSEMBLY (INC 28-32)
-
281706-104 FLAG, SAFETYFLAG, SAFETY
-
291606-954 POLE, SAFETY FLAGPOLE, SAFETY FLAG
-
302606-010 MOUNTING, SAFETY FLAG - ASSEMBLYMOUNTING, SAFETY FLAG - ASSEMBLY
-
318050-247 WASHERWASHER
-
328002-134 SCREW, CAPSCREW, CAP
-
330623-562 PLUG, HOLEPLUG, HOLE
-
340411-053 DECAL, ''CE''DECAL, ''CE''
-
353611-923 DECAL, REFLECTIVE - 20 FTDECAL, REFLECTIVE - 20 FT
-
360630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
378041-366 NUT, LOCKNUT, LOCK
-
380123-394 CLAMPCLAMP
