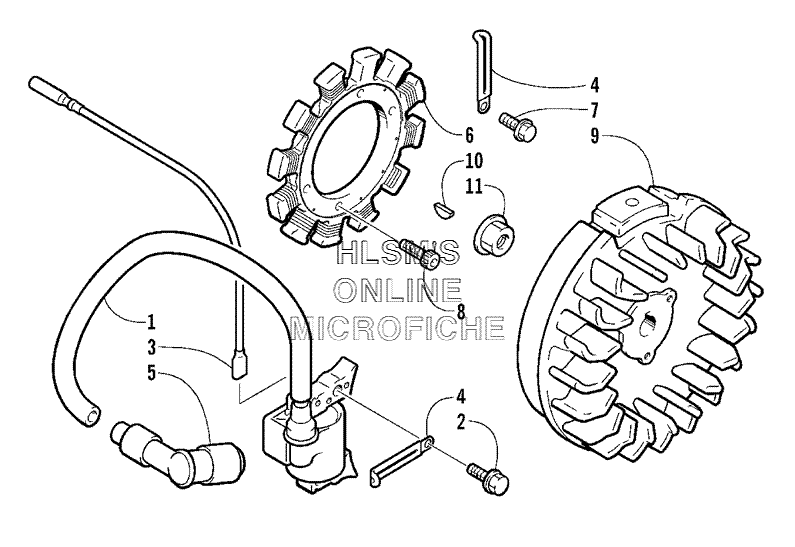

MAGNETO для Arctic Cat Z 120 - 2001 года выпуска
-
№АртикулНазвание
-
10693-326 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
20693-242 BOLTBOLT
-
30693-263 WIRE, MAGNETO LEADWIRE, MAGNETO LEAD
-
43002-964 CLAMP, WIRECLAMP, WIRE
-
50691-322 CAP, SPARK PLUGCAP, SPARK PLUG
-
60694-029 STATORSTATOR
-
70693-241 BOLTBOLT
-
80694-023 BOLTBOLT
-
90694-030 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
103004-540 KEYKEY
-
110691-370 NUTNUT
Все узлы модели:
- A-ARM ASSEMBLY
- AIR CLEANER ASSEMBLY
- BELLY PAN AND EXHAUST ASSEMBLIES
- CARBURETOR
- CHASSIS- FOOTREST- AND REAR BUMPER ASSEMBLY
- CYLINDER AND CRANKCASE
- DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
- ENGINE AND RELATED PARTS
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY
- HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY
- • MAGNETO
- PISTON AND CRANKSHAFT
- REAR SUSPENSION ARM ASSEMBLY
- RECOIL STARTER
- RELATED ITEMS
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY
- STEERING POST AND TIE ROD ASSEMBLY
- THROTTLE CONTROL ASSEMBLY
