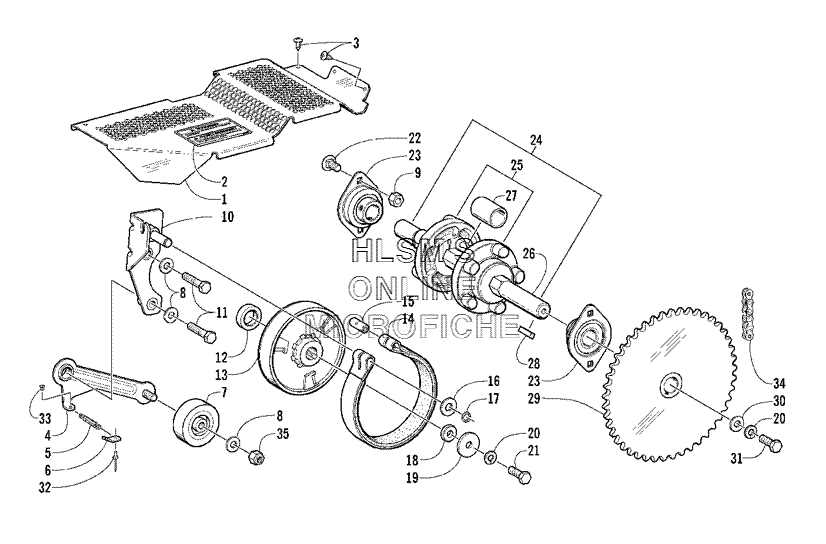

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat Z 120 - 2001 года выпуска`
-
№АртикулНазвание
-
11612-180 SHIELD, CLUTCH/BRAKE/MUFFLERSHIELD, CLUTCH/BRAKE/MUFFLER
-
23611-754 DECAL, WARNING - GUARDDECAL, WARNING - GUARD
-
30623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
40702-376 TENSIONER, CHAINTENSIONER, CHAIN
-
51602-066 SPRING, TENSIONER - CHAINSPRING, TENSIONER - CHAIN
-
62606-021 TAB, SPRING RETAINERTAB, SPRING RETAINER
-
71602-065 ROLLER, CHAIN TENSIONERROLLER, CHAIN TENSIONER
-
88050-247 WASHERWASHER
-
98040-426 NUT, LOCKNUT, LOCK
-
100702-360 BRACKET, BRAKEBRACKET, BRAKE
-
118004-135 SCREW, CAPSCREW, CAP
-
121602-026 SPACER, CLUTCH - INNERSPACER, CLUTCH - INNER
-
131602-020 CLUTCH, CENTRIFUGALCLUTCH, CENTRIFUGAL
-
141602-021 BAND, BRAKEBAND, BRAKE
-
151602-049 PIN, RETAINER - BRAKE CABLEPIN, RETAINER - BRAKE CABLE
-
168050-277 WASHERWASHER
-
170623-821 RING, SNAPRING, SNAP
-
181602-027 SPACER, CLUTCH - OUTERSPACER, CLUTCH - OUTER
-
190123-260 WASHERWASHER
-
208051-242 WASHER, LOCKWASHER, LOCK
-
218004-132 SCREW, CAPSCREW, CAP
-
228011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
231602-023 BEARING, DRIVE SPROCKETBEARING, DRIVE SPROCKET
-
240728-061 TRACK DRIVE ASSEMBLY (INC 23 AND 25-27)TRACK DRIVE ASSEMBLY (INC 23 AND 25-27)
-
251602-117 SPROCKET, TRACK DRIVESPROCKET, TRACK DRIVE
-
261602-017 SHAFT, DRIVE SPROCKETSHAFT, DRIVE SPROCKET
-
271602-148 SPACERSPACER
-
280623-823 KEYKEY
-
291602-018 SPROCKET, CHAIN - TRACK DRIVESPROCKET, CHAIN - TRACK DRIVE
-
300123-019 WASHERWASHER
-
318002-131 SCREW, CAPSCREW, CAP
-
328060-484 RIVETRIVET
-
330623-868 BUSHING, SNAPBUSHING, SNAP
-
341602-019 CHAIN, 76PCHAIN, 76P
-
358041-426 NUT, LOCKNUT, LOCK
