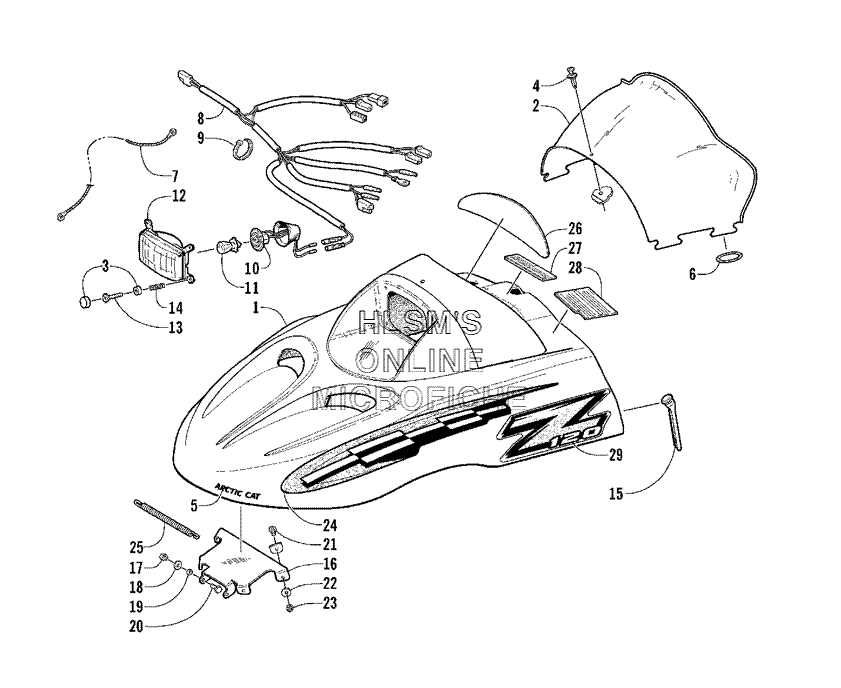

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat Z 120 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-008 HOOD W/O DECALS
    HOOD W/O DECALS
  • 1
    1718-007 HOOD W/DECALS
    HOOD W/DECALS
  • 2
    1606-747 WINDSHIELD
    WINDSHIELD
  • 3
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 4
    0623-243 CLIP, RETAINING
    CLIP, RETAINING
  • 5
    3611-883 DECAL, ''ARCTIC CAT'' - HOOD
    DECAL, ''ARCTIC CAT'' - HOOD
  • 6
    0616-032 O-RING, WINDSHIELD
    O-RING, WINDSHIELD
  • 7
    0606-121 CABLE, HOOD
    CABLE, HOOD
  • 8
    0686-684 HARNESS, WIRING - MAIN
    HARNESS, WIRING - MAIN
  • 9
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
  • 10
    0609-006 SOCKET W/RUBBER CAP
    SOCKET W/RUBBER CAP
  • 11
    0609-004 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 12
    0609-005 LENS/REFLECTOR, HEADLIGHT
    LENS/REFLECTOR, HEADLIGHT
  • 13
    0123-616 SCREW, ADJUSTMENT
    SCREW, ADJUSTMENT
  • 14
    0123-614 SPRING, ADJUSTMENT SCREW
    SPRING, ADJUSTMENT SCREW
  • 15
    1606-930 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 16
    2606-008 BRACKET, MOUNTING - HOOD - UPPER
    BRACKET, MOUNTING - HOOD - UPPER
  • 17
    8040-366 NUT, LOCK
    NUT, LOCK
  • 18
    8050-217 WASHER
    WASHER
  • 19
    0107-234 SPACER
    SPACER
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    0623-420 SCREW, HEX WASHER HEAD
    SCREW, HEX WASHER HEAD
  • 22
    0623-594 WASHER
    WASHER
  • 23
    0623-392 NUT, LOCK
    NUT, LOCK
  • 24
    3611-878 DECAL, HOOD - RIGHT FRONT
    DECAL, HOOD - RIGHT FRONT
  • 24
    3611-879 DECAL, HOOD - LEFT FRONT
    DECAL, HOOD - LEFT FRONT
  • 25
    0123-510 SPRING, EXTENSION
    SPRING, EXTENSION
  • 26
    3611-675 DECAL, INSTRUMENT PANEL
    DECAL, INSTRUMENT PANEL
  • 27
    3611-755 DECAL, CAUTION - THROTTLE
    DECAL, CAUTION - THROTTLE
  • 28
    3611-678 DECAL, CAUTION - HOOD
    DECAL, CAUTION - HOOD
  • 29
    3611-877 DECAL, ''Z 120'' - HOOD
    DECAL, ''Z 120'' - HOOD
