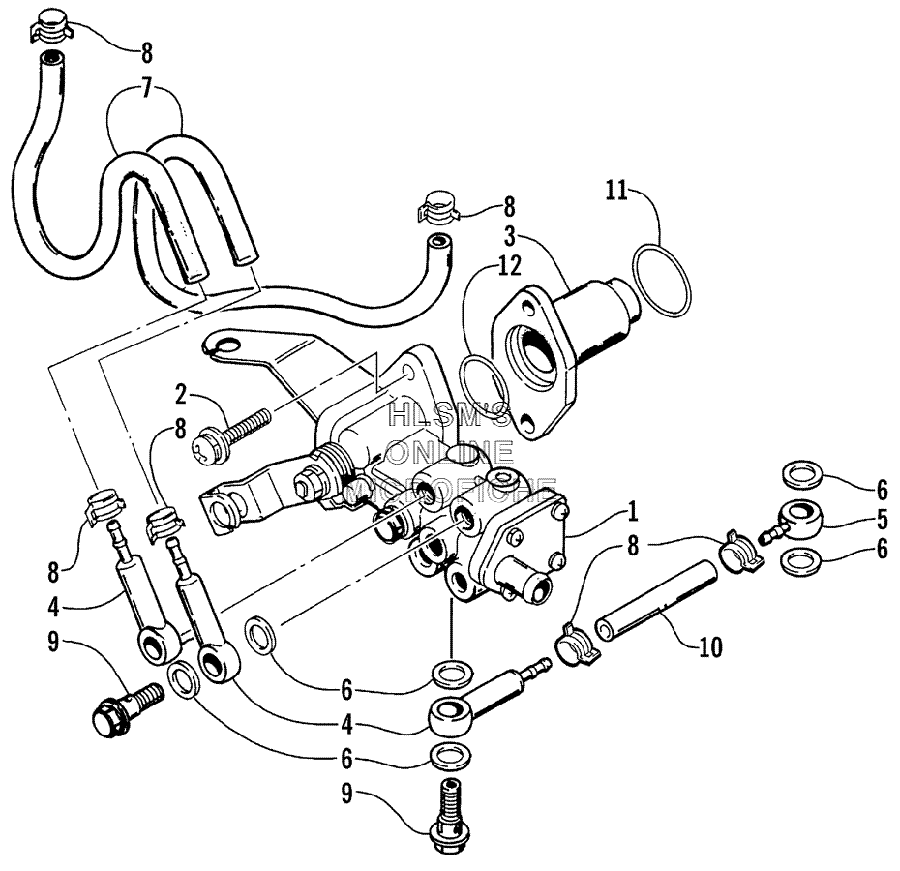

OIL PUMP для Arctic Cat ZR 500 - 2000 года выпуска`
-
№АртикулНазвание
-
13005-247 OIL PUMP ASSY.OIL PUMP ASSY.
-
23004-373 SCREW, OIL PUMPSCREW, OIL PUMP
-
33004-804 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43003-217 VALVE, CHECKVALVE, CHECK
-
53003-661 UNIONUNION
-
63402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
73008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93004-346 BOLT, UNIONBOLT, UNION
-
103005-357 HOSE, OIL PUMPHOSE, OIL PUMP
-
113005-126 O-RINGO-RING
-
123008-030 O-RINGO-RING
