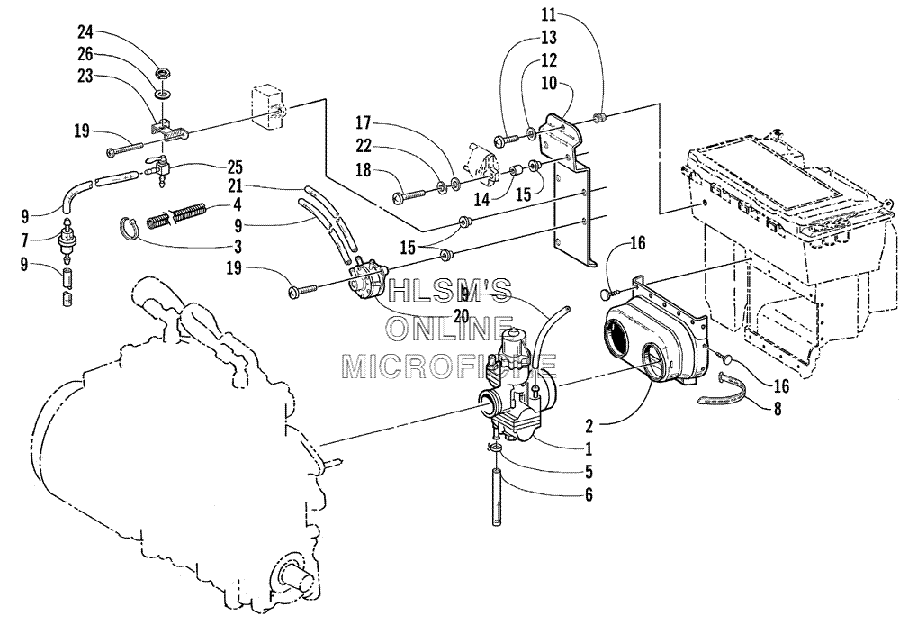

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZR 500 - 2000 года выпуска`
-
№АртикулНазвание
-
10770-436 CARBURETOR, VM38, 437CARBURETOR, VM38, 437
-
21670-002 BOOT, CARBURETORBOOT, CARBURETOR
-
30123-811 TIE, CABLETIE, CABLE
-
40716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
50623-652 CLAMP, HOSECLAMP, HOSE
-
60610-279 HOSE, DRAINHOSE, DRAIN
-
70510-335 FILTER, FUELFILTER, FUEL
-
80670-970 STRAP, CARBURETOR BOOTSTRAP, CARBURETOR BOOT
-
90610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
90610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
100770-310 PLATE, MOUNTINGPLATE, MOUNTING
-
110623-627 INSERT, THREADEDINSERT, THREADED
-
128051-212 WASHER, LOCKWASHER, LOCK
-
138017-577 SCREW, MACHINESCREW, MACHINE
-
140107-630 SPACER, FUEL PUMPSPACER, FUEL PUMP
-
150623-779 INSERTINSERT
-
160623-165 CLIP, RETAININGCLIP, RETAINING
-
180623-082 SCREW, MACHINESCREW, MACHINE
-
190623-833 SCREW, MACHINESCREW, MACHINE
-
200670-311 PUMP, FUELPUMP, FUEL
-
210610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
228051-152 WASHER, LOCKWASHER, LOCK
-
230670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
240623-287 NUTNUT
-
250670-144 VALVE, FUEL SHUT, OFF (INC. 24 AND 26)VALVE, FUEL SHUT, OFF (INC. 24 AND 26)
-
260623-288 . WASHER. WASHER
