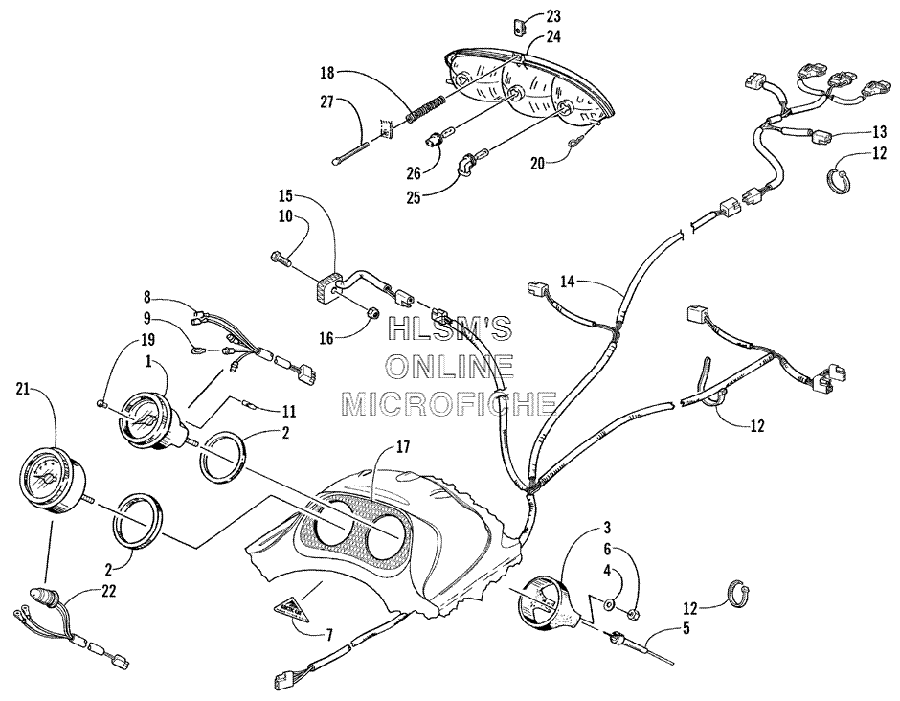

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat ZR 500 - 2000 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 8, 11, AND 19)SPEEDOMETER (INC. 8, 11, AND 19)
-
10620-239 SPEEDOMETER (INC. 8, 11, AND 19) (INTERNATIONAL)SPEEDOMETER (INC. 8, 11, AND 19) (INTERNATIONAL)
-
20620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
30620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
48050-212 WASHERWASHER
-
50620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
60623-038 NUT W/WASHERNUT W/WASHER
-
73611-611 DECAL, "MADE IN U.S.A."DECAL, "MADE IN U.S.A."
-
80620-151 HARNESS, BULB, SPEEDOMETERHARNESS, BULB, SPEEDOMETER
-
90620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
108002-044 SCREW, CAPSCREW, CAP
-
110230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
120123-788 TIE, CABLETIE, CABLE
-
130686-515 HARNESS, HOODHARNESS, HOOD
-
140686-501 HARNESS, MAINHARNESS, MAIN
-
150630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
168041-366 NUT, LOCKNUT, LOCK
-
173611-490 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
180623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
190620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
200623-847 PIN, COTTERPIN, COTTER
-
210620-237 TACHOMETER (INC. 22)TACHOMETER (INC. 22)
-
220620-215 . HARNESS, TACHOMETER. HARNESS, TACHOMETER
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
250609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
260609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
