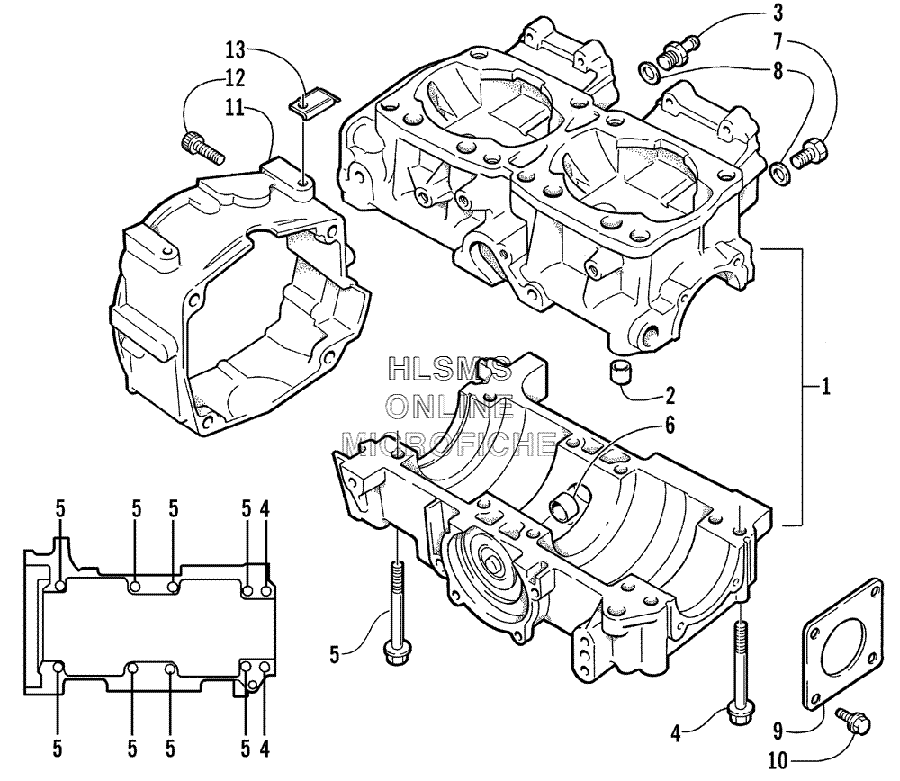

CRANKCASE ASSY. для Arctic Cat ZR 500 - 2000 года выпуска
-
№АртикулНазвание
-
13005-413 CRANKCASE ASSY. (INC. 1, 4, AND 6)CRANKCASE ASSY. (INC. 1, 4, AND 6)
-
23005-206 . PIN, DOWEL. PIN, DOWEL
-
33002-040 UNION, HOSEUNION, HOSE
-
43005-410 BOLTBOLT
-
53005-411 BOLTBOLT
-
63003-647 BUSHING, OIL PUMP INLET SHAFTBUSHING, OIL PUMP INLET SHAFT
-
73002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
83002-276 GASKETGASKET
-
93004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
103004-377 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
113005-109 CASE, MAGNETOCASE, MAGNETO
-
123004-502 BOLT, MAGNETO CASEBOLT, MAGNETO CASE
-
130608-117 BRACKET, GROUND WIREBRACKET, GROUND WIRE
