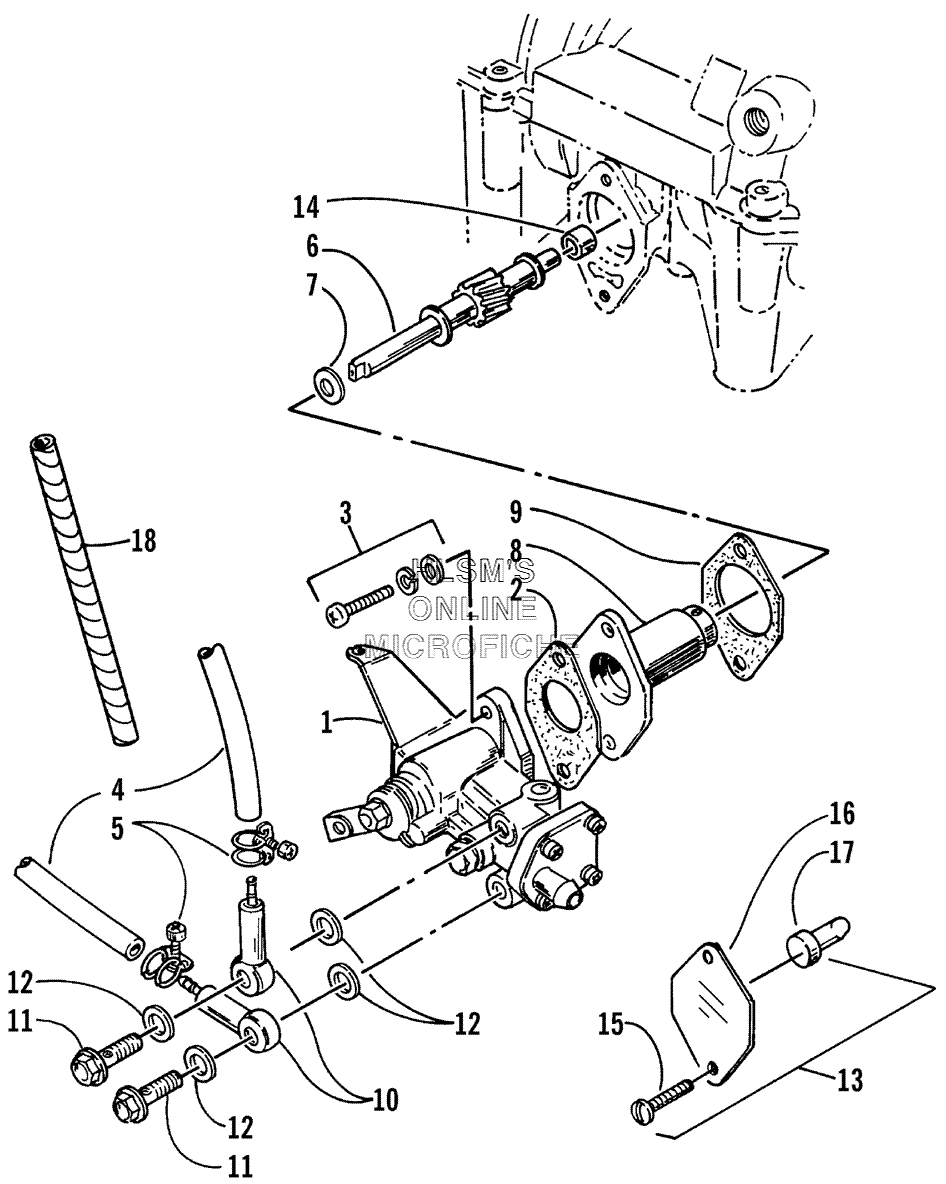

OIL PUMP для Arctic Cat Z 370 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3005-533 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    3004-349 GASKET, OIL PUMP
    GASKET, OIL PUMP
  • 3
    3004-373 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    3008-035 HOSE, OIL PUMP
    HOSE, OIL PUMP
  • 5
    3003-218 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    3002-770 GEAR, OIL PUMP DRIVEN
    GEAR, OIL PUMP DRIVEN
  • 7
    3002-749 SHIM
    SHIM
  • 8
    3003-749 RETAINER, OIL PUMP
    RETAINER, OIL PUMP
  • 9
    3004-286 GASKET, RETAINER
    GASKET, RETAINER
  • 10
    3003-217 VALVE, CHECK
    VALVE, CHECK
  • 11
    3004-346 BOLT, UNION
    BOLT, UNION
  • 12
    3402-009 GASKET
    GASKET
  • 13
    0636-068 KIT, NON, INJECTION (INC. 15, 16, 17)
    KIT, NON, INJECTION (INC. 15, 16, 17)
  • 14
    3003-289 BUSHING, OIL PUMP
    BUSHING, OIL PUMP
  • 15
    3004-638 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0136-262 PLATE, CRANKCASE
    PLATE, CRANKCASE
  • 17
    0670-101 PLUG, OIL PUMP
    PLUG, OIL PUMP
  • 18
    3005-032 PROTECTOR
    PROTECTOR
