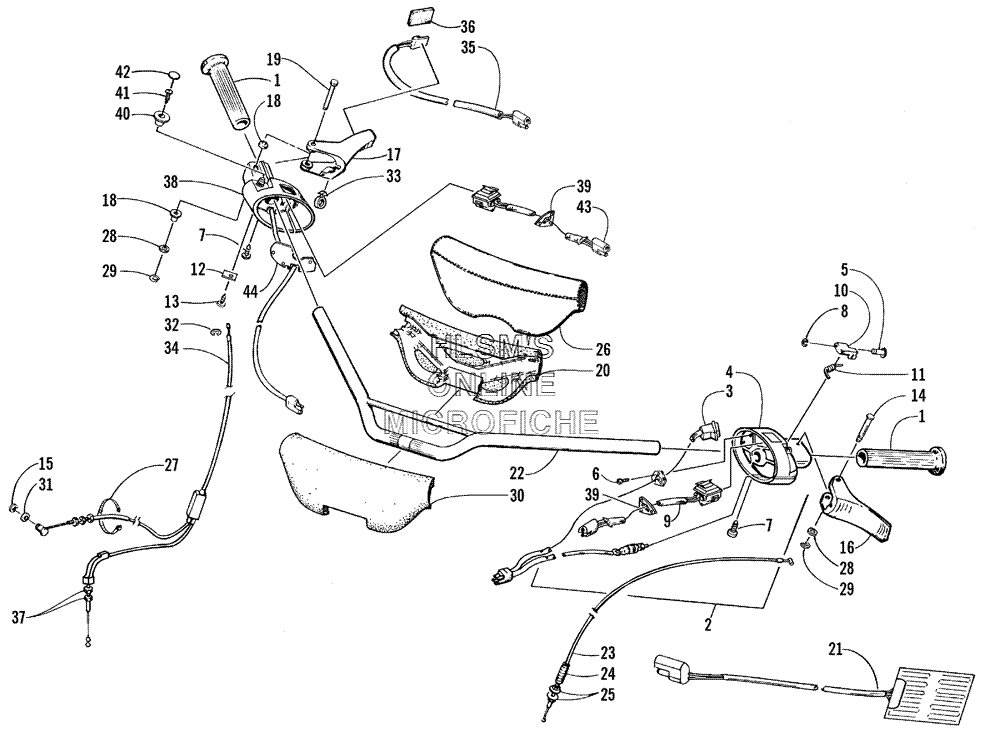

HANDLEBAR AND CONTROLS для Arctic Cat Z 370 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0117-793 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    0609-393 SWITCH, BRAKE, ASSEMBLY (INC. 3, 11)
    SWITCH, BRAKE, ASSEMBLY (INC. 3, 11)
  • 3
    0609-452 . SWITCH, DIMMER, BRAKE
    . SWITCH, DIMMER, BRAKE
  • 4
    0609-478 . HOUSING, BRAKE SWITCH, ON/OFF
    . HOUSING, BRAKE SWITCH, ON/OFF
  • 5
    0609-050 . PIN, ACTUATOR
    . PIN, ACTUATOR
  • 6
    0609-312 . SCREW, SELF, TAPPING
    . SCREW, SELF, TAPPING
  • 7
    0609-085 . SCREW, MACHINE
    . SCREW, MACHINE
  • 8
    0609-051 . RING, RETAINING
    . RING, RETAINING
  • 9
    0609-385 . CONTROL, HANDWARMER (INC. 39)
    . CONTROL, HANDWARMER (INC. 39)
  • 10
    0609-314 . ACTUATOR, BRAKE, PARKING
    . ACTUATOR, BRAKE, PARKING
  • 11
    0609-313 . SPRING, BRAKE, PARKING
    . SPRING, BRAKE, PARKING
  • 12
    0609-319 CLAMP, HARNESS, SINGLE
    CLAMP, HARNESS, SINGLE
  • 13
    0609-321 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    0609-315 AXLE, LEVER, BRAKE
    AXLE, LEVER, BRAKE
  • 15
    0124-057 E, RING
    E, RING
  • 16
    0609-266 LEVER, BRAKE
    LEVER, BRAKE
  • 17
    0609-257 LEVER, THROTTLE
    LEVER, THROTTLE
  • 18
    0609-038 SEAL, THROTTLE
    SEAL, THROTTLE
  • 19
    0609-317 AXLE, LEVER, THROTTLE
    AXLE, LEVER, THROTTLE
  • 20
    0605-353 PAD, HANDLEBAR (REAR)
    PAD, HANDLEBAR (REAR)
  • 21
    0609-374 ELEMENT, HANDWARMER
    ELEMENT, HANDWARMER
  • 22
    0705-287 HANDLEBAR
    HANDLEBAR
  • 23
    0687-089 CABLE, BRAKE
    CABLE, BRAKE
  • 24
    0109-194 SPRING, BRAKE CABLE
    SPRING, BRAKE CABLE
  • 25
    0123-406 NUT, FLANGE
    NUT, FLANGE
  • 26
    0705-285 WRAP, HANDLEBAR PAD
    WRAP, HANDLEBAR PAD
  • 27
    0123-788 CABLE TIE, 7 IN.
    CABLE TIE, 7 IN.
  • 28
    0609-036 WASHER
    WASHER
  • 29
    0609-040 RING, RETAINING
    RING, RETAINING
  • 30
    0605-354 PAD, HANDLEBAR (FRONT)
    PAD, HANDLEBAR (FRONT)
  • 31
    0124-056 WASHER
    WASHER
  • 32
    0123-231 RING, RETAINING
    RING, RETAINING
  • 33
    0623-262 CLIP, WIRE
    CLIP, WIRE
  • 34
    0687-084 CABLE, THROTTLE
    CABLE, THROTTLE
  • 35
    0609-372 ELEMENT, THUMBWARMER
    ELEMENT, THUMBWARMER
  • 36
    0617-248 PAD, INSULATOR
    PAD, INSULATOR
  • 37
    0623-464 NUT, LOCKING, THROTTLE CABLE
    NUT, LOCKING, THROTTLE CABLE
  • 38
    0609-387 CONTROL, THROTTLE (INC. 6, 7, AND 39, 44)
    CONTROL, THROTTLE (INC. 6, 7, AND 39, 44)
  • 39
    0609-378 . PLATE, COVER
    . PLATE, COVER
  • 40
    0609-282 . KNOB, EMERGENCY STOP
    . KNOB, EMERGENCY STOP
  • 41
    0623-215 . SCREW, SELF, TAPPING
    . SCREW, SELF, TAPPING
  • 42
    0609-283 . DECAL, MARK PLATE
    . DECAL, MARK PLATE
  • 43
    0609-384 . CONTROL, THUMBWARMER
    . CONTROL, THUMBWARMER
  • 44
    0609-316 . COVER, THROTTLE SWITCH
    . COVER, THROTTLE SWITCH
