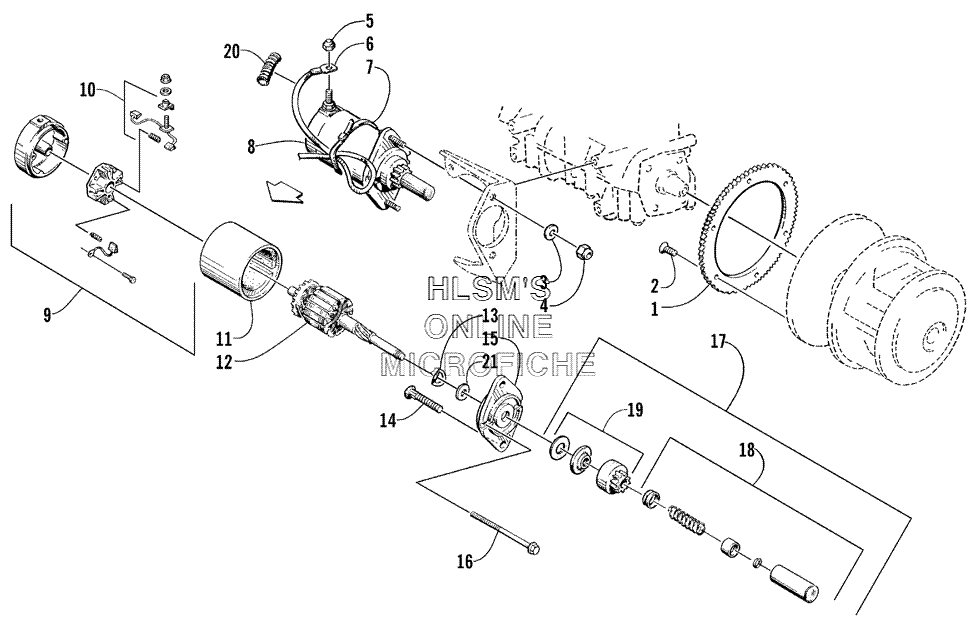

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Z 370 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1639-487 ELECTRIC START KIT (STANDARD ON ES)
    ELECTRIC START KIT (STANDARD ON ES)
  • 1
    0645-168 GEAR, RING
    GEAR, RING
  • 2
    0623-441 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    8050-242 WASHER
    WASHER
  • 4
    8040-426 NUT, LOCK
    NUT, LOCK
  • 5
    0623-122 NUT
    NUT
  • 6
    0645-244 CABLE, SOLENOID/STARTER MOTOR
    CABLE, SOLENOID/STARTER MOTOR
  • 7
    0623-144 CABLE TIE, 17.5 IN.
    CABLE TIE, 17.5 IN.
  • 8
    0745-052 MOTOR, STARTER (INC. 8, 19)
    MOTOR, STARTER (INC. 8, 19)
  • 9
    0645-277 . CAP, COMMUTATOR (INC. 10)
    . CAP, COMMUTATOR (INC. 10)
  • 10
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 12
    0645-189 . ARMATURE
    . ARMATURE
  • 13
    0645-126 . WASHER, WAVE
    . WASHER, WAVE
  • 14
    0623-093 . BOLT, RIBBED
    . BOLT, RIBBED
  • 15
    0645-188 . CAP, DRIVE
    . CAP, DRIVE
  • 16
    0645-191 . BOLT, STARTER MOTOR
    . BOLT, STARTER MOTOR
  • 17
    0645-187 . PINION, DRIVE, ASSEMBLY (INC. 18, 19)
    . PINION, DRIVE, ASSEMBLY (INC. 18, 19)
  • 18
    0645-186 KIT, STOPPER, PINION
    KIT, STOPPER, PINION
  • 19
    0645-227 KIT, DRIVE, ASSEMBLY
    KIT, DRIVE, ASSEMBLY
  • 20
    0716-391 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 21
    0645-127 WASHER, THRUST
    WASHER, THRUST
