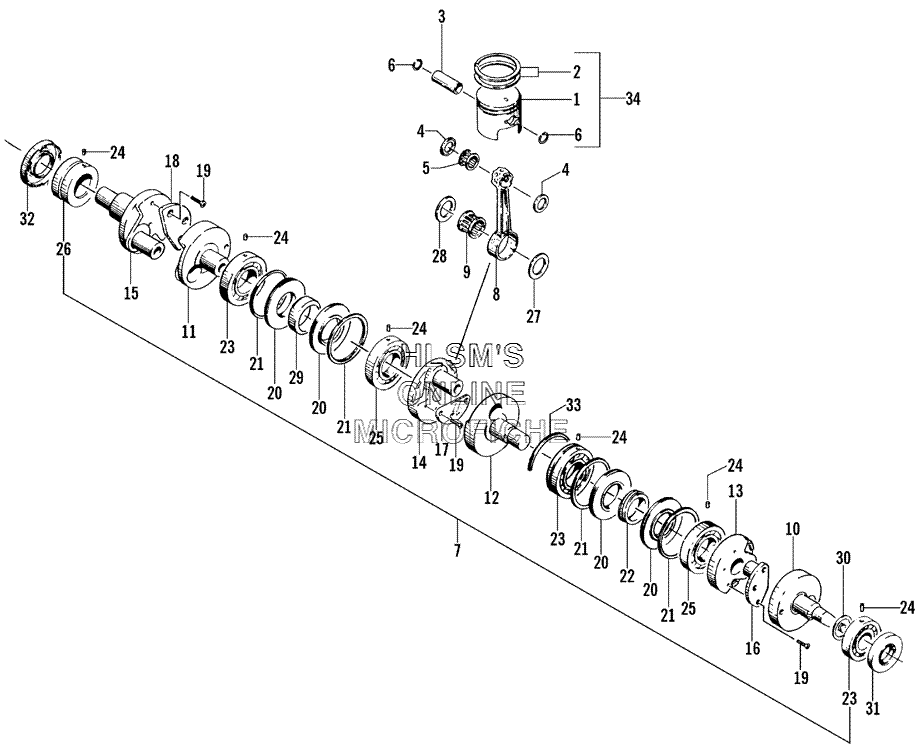

PISTON AND CRANKSHAFT для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-388 PISTONPISTON
-
23004-768 RING ASSEMBLYRING ASSEMBLY
-
33005-363 PIN, PISTONPIN, PISTON
-
43004-780 WASHERWASHER
-
53003-107 BEARING, PISTON PINBEARING, PISTON PIN
-
63003-537 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
73005-359 CRANKSHAFT ASSEMBLY (INC. 8, 23 AND 25, 30)CRANKSHAFT ASSEMBLY (INC. 8, 23 AND 25, 30)
-
83005-151 . ROD, CONNECTING. ROD, CONNECTING
-
93008-423 . BEARING, CRANK PIN. BEARING, CRANK PIN
-
103005-021 . CRANKSHAFT (RIGHT). CRANKSHAFT (RIGHT)
-
113005-022 . CRANKSHAFT (MIDDLE). CRANKSHAFT (MIDDLE)
-
123005-023 . CRANKSHAFT (MIDDLE). CRANKSHAFT (MIDDLE)
-
133005-024 . WHEEL, CRANKSHAFT (NO. 1). WHEEL, CRANKSHAFT (NO. 1)
-
143005-025 . WHEEL, CRANKSHAFT (NO. 2). WHEEL, CRANKSHAFT (NO. 2)
-
153004-795 . CRANKSHAFT (LEFT). CRANKSHAFT (LEFT)
-
163004-796 . BALANCER. BALANCER
-
173004-797 . BALANCER. BALANCER
-
183004-798 . BALANCER. BALANCER
-
193004-372 . SCREW, MACHINE. SCREW, MACHINE
-
203004-799 . RACE (MIDDLE) SEAL. RACE (MIDDLE) SEAL
-
213004-800 . RING. RING
-
223005-362 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
233003-164 . BEARING (MIDDLE). BEARING (MIDDLE)
-
243003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
253004-783 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
263003-805 BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
273003-782 WASHERWASHER
-
283003-933 WASHER, CRANK PINWASHER, CRANK PIN
-
293004-781 SPACERSPACER
-
303005-139 WASHERWASHER
-
313005-188 OIL SEAL (RIGHT)OIL SEAL (RIGHT)
-
323003-759 OIL SEAL (LEFT)OIL SEAL (LEFT)
-
333003-216 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
343005-627 PISTON ASSEMBLY (INC. 1, 2, AND 6)PISTON ASSEMBLY (INC. 1, 2, AND 6)
