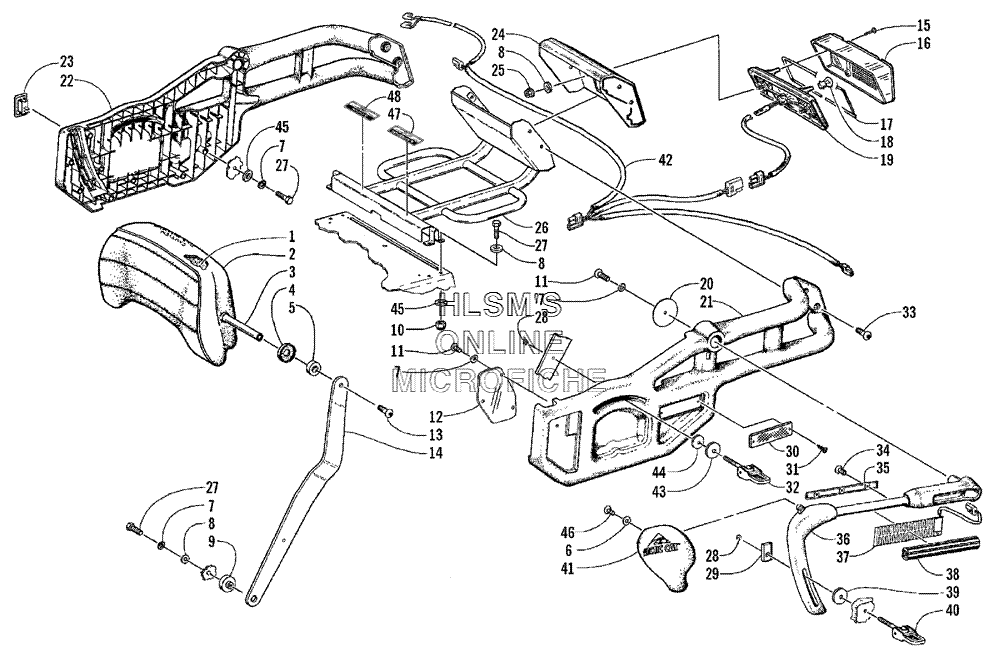

BACKREST AND TAILLIGHT ASSEMBLY для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0716-737 BACKREST W/COVER (INC. 2)
    BACKREST W/COVER (INC. 2)
  • 2
    0716-739 . COVER, BACKREST
    . COVER, BACKREST
  • 3
    0114-163 AXLE, BACKREST
    AXLE, BACKREST
  • 4
    0623-539 WASHER, CUP
    WASHER, CUP
  • 5
    0616-547 BLOCK, TENSION, BACKREST
    BLOCK, TENSION, BACKREST
  • 6
    0123-802 WASHER
    WASHER
  • 7
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 8
    8050-212 WASHER
    WASHER
  • 9
    1606-903 SPACER, BACKREST ADJUSTER
    SPACER, BACKREST ADJUSTER
  • 10
    8040-366 NUT, LOCK
    NUT, LOCK
  • 11
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    1606-790 RETAINER, HANDHOLD, PASSENGER
    RETAINER, HANDHOLD, PASSENGER
  • 13
    0623-566 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    1606-780 ARM, ADJUSTER, BACKREST (RIGHT)
    ARM, ADJUSTER, BACKREST (RIGHT)
  • 14
    1606-781 ARM, ADJUSTER, BACKREST (LEFT)
    ARM, ADJUSTER, BACKREST (LEFT)
  • 15
    0609-093 SCREW, RETAINING
    SCREW, RETAINING
  • 16
    0609-090 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 17
    0609-092 GASKET, TAILLIGHT LENS
    GASKET, TAILLIGHT LENS
  • 18
    0109-460 BULB, STOP/TAILLIGHT
    BULB, STOP/TAILLIGHT
  • 19
    0609-091 HOUSING, TAILLIGHT W/SOCKET
    HOUSING, TAILLIGHT W/SOCKET
  • 20
    1606-778 RETAINER, HANDHOLD
    RETAINER, HANDHOLD
  • 21
    1606-683 BRACKET, BACKREST/RACK (LEFT)
    BRACKET, BACKREST/RACK (LEFT)
  • 22
    1606-682 BRACKET, BACKREST/RACK (RIGHT)
    BRACKET, BACKREST/RACK (RIGHT)
  • 23
    0609-370 SWITCH, PASSENGER, HANDWARMER
    SWITCH, PASSENGER, HANDWARMER
  • 24
    1606-689 COVER, TAILLIGHT
    COVER, TAILLIGHT
  • 25
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 26
    0716-992 BRACKET, MOUNTING, RACK/TAILLIGHT
    BRACKET, MOUNTING, RACK/TAILLIGHT
  • 27
    8002-042 SCREW, CAP
    SCREW, CAP
  • 28
    0623-826 E, RING
    E, RING
  • 29
    0623-850 T, NUT
    T, NUT
  • 30
    0606-029 REFLECTOR (REAR) (RED)
    REFLECTOR (REAR) (RED)
  • 31
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 32
    1606-819 LEVER, QUICK RELEASE, BACKREST
    LEVER, QUICK RELEASE, BACKREST
  • 33
    8017-582 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    0623-727 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 35
    1606-772 RETAINER, HANDGRIP, PASSENGER
    RETAINER, HANDGRIP, PASSENGER
  • 36
    1606-684 HANDHOLD, PASSENGER (RIGHT)
    HANDHOLD, PASSENGER (RIGHT)
  • 36
    1606-685 HANDHOLD, PASSENGER (LEFT)
    HANDHOLD, PASSENGER (LEFT)
  • 37
    0609-476 ELEMENT, HANDWARMER, PASSENGER
    ELEMENT, HANDWARMER, PASSENGER
  • 38
    1606-771 HANDGRIP, PASSENGER
    HANDGRIP, PASSENGER
  • 39
    0623-837 WASHER, FRICTION
    WASHER, FRICTION
  • 40
    1606-688 LEVER, QUICK RELEASE, HANDHOLD
    LEVER, QUICK RELEASE, HANDHOLD
  • 41
    1606-238 DEFLECTOR, WIND (RIGHT)
    DEFLECTOR, WIND (RIGHT)
  • 41
    1606-239 DEFLECTOR, WIND (LEFT)
    DEFLECTOR, WIND (LEFT)
  • 42
    0686-623 HARNESS, HANDWARMER, PASSENGER
    HARNESS, HANDWARMER, PASSENGER
  • 43
    0623-842 WASHER
    WASHER
  • 44
    0623-838 WASHER, FRICTION
    WASHER, FRICTION
  • 45
    8050-222 WASHER
    WASHER
  • 46
    0623-378 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 47
    1611-569 DECAL, WARNING, MAX PAYLOAD (FRENCH)
    DECAL, WARNING, MAX PAYLOAD (FRENCH)
  • 48
    1611-568 DECAL, WARNING, MAX PAYLOAD (ENGLISH)
    DECAL, WARNING, MAX PAYLOAD (ENGLISH)
