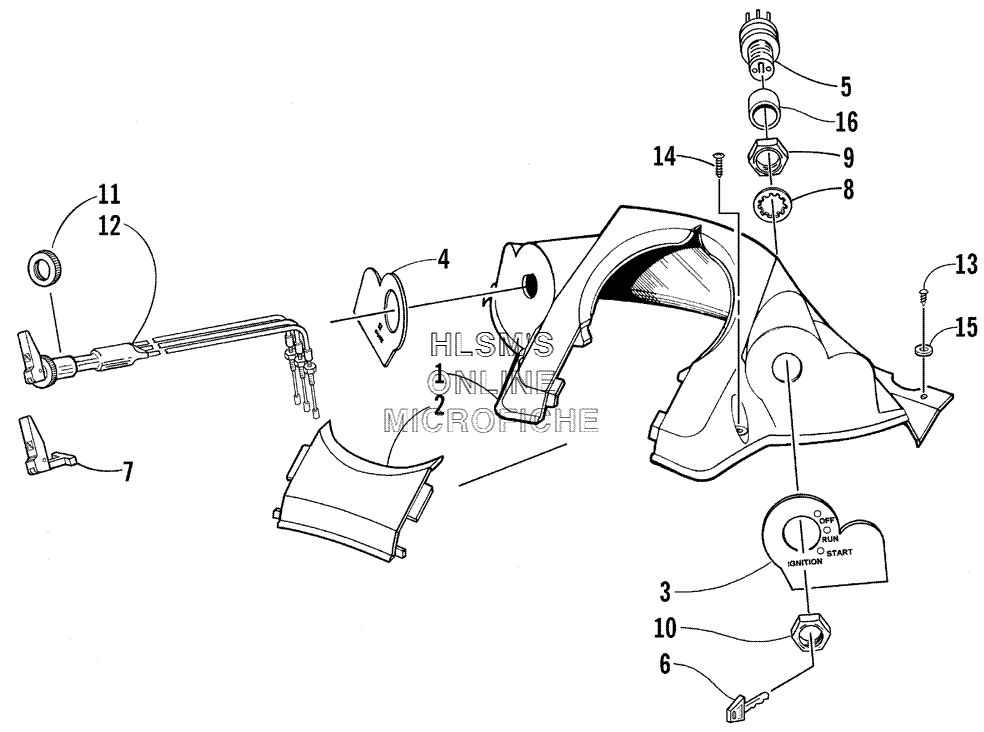

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-735 CONSOLE
    CONSOLE
  • 2
    1606-105 DOOR, CONSOLE
    DOOR, CONSOLE
  • 3
    2611-744 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 4
    2611-867 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 5
    0609-449 SWITCH, IGNITION, MULTI, KEY (INC. 6)
    SWITCH, IGNITION, MULTI, KEY (INC. 6)
  • 7
    0636-062 KIT, CHOKE LEVER
    KIT, CHOKE LEVER
  • 8
    0123-899 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 9
    0123-900 NUT, IGNITION
    NUT, IGNITION
  • 10
    0609-113 NUT, RETAINING
    NUT, RETAINING
  • 11
    0623-054 NUT, CHOKE
    NUT, CHOKE
  • 12
    0687-115 CABLE, CHOKE
    CABLE, CHOKE
  • 13
    0623-378 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    0623-219 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 15
    8050-157 WASHER
    WASHER
  • 16
    0609-450 SPACER, IGNITION SWITCH
    SPACER, IGNITION SWITCH
