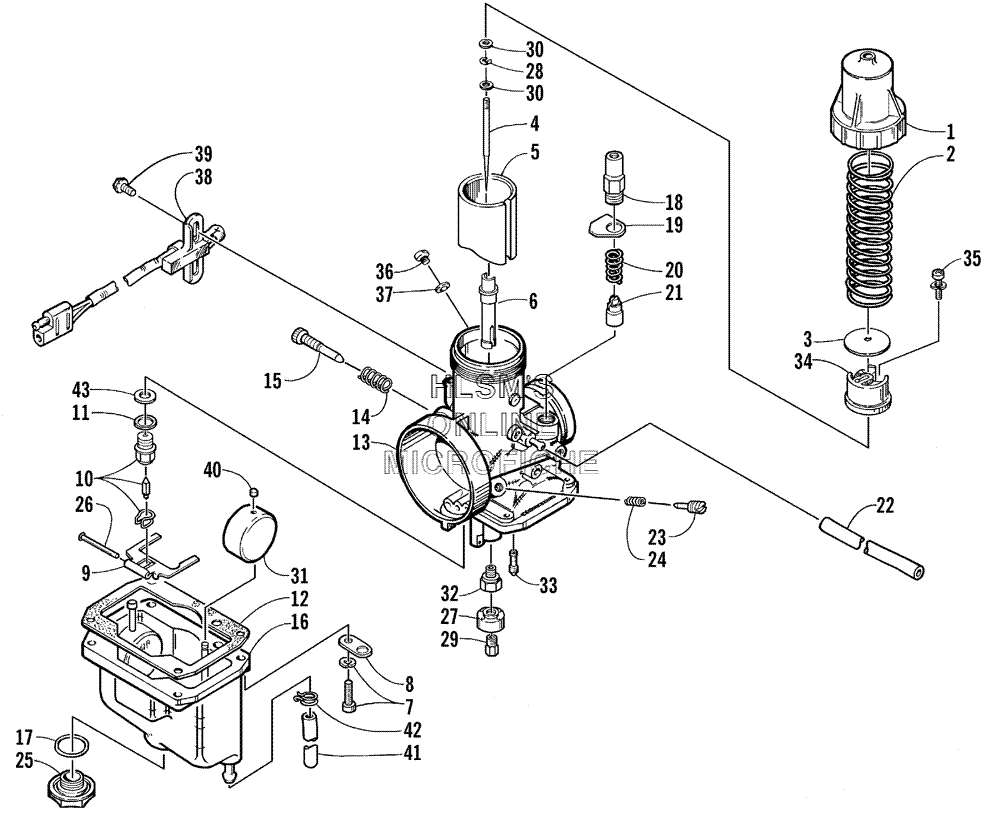

CARBURETOR для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0770-380 CARBURETOR ASSEMBLY VM36, 191
    CARBURETOR ASSEMBLY VM36, 191
  • 1
    6505-582 TOP, MIXING CHAMBER
    TOP, MIXING CHAMBER
  • 2
    6505-644 SPRING, PISTON VALVE
    SPRING, PISTON VALVE
  • 3
    6505-588 PLATE, RETAINER
    PLATE, RETAINER
  • 4
    6505-236 JET NEEDLE 6DH8, 3
    JET NEEDLE 6DH8, 3
  • 4
    6505-236 JET NEEDLE 6DH8, 2 (OVER 9, 000 FT ALT.)
    JET NEEDLE 6DH8, 2 (OVER 9, 000 FT ALT.)
  • 5
    6505-877 VALVE, PISTON, CA 2.0
    VALVE, PISTON, CA 2.0
  • 6
    6505-595 NEEDLE JET P, 2 (480)
    NEEDLE JET P, 2 (480)
  • 6
    6505-824 NEEDLE JET 0, 8 (480) (5, 000, 9, 000 FT ALT.)
    NEEDLE JET 0, 8 (480) (5, 000, 9, 000 FT ALT.)
  • 6
    6505-931 NEEDLE JET 0, 6 (480) (OVER 9, 000 FT ALT.)
    NEEDLE JET 0, 6 (480) (OVER 9, 000 FT ALT.)
  • 7
    6505-195 SCREW W/SPRING WASHER
    SCREW W/SPRING WASHER
  • 8
    6505-094 PLATE, HOSE
    PLATE, HOSE
  • 9
    6505-638 ARM, FLOAT
    ARM, FLOAT
  • 10
    6505-171 NEEDLE VALVE ASSEMBLY 1.5
    NEEDLE VALVE ASSEMBLY 1.5
  • 11
    6505-102 WASHER, VALVE SEAT
    WASHER, VALVE SEAT
  • 12
    6505-197 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 14
    6505-021 SPRING, THROTTLE STOP
    SPRING, THROTTLE STOP
  • 15
    6505-101 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16
    6505-646 CHAMBER, FLOAT
    CHAMBER, FLOAT
  • 17
    6505-622 WASHER
    WASHER
  • 18
    6505-188 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 19
    6505-193 WASHER
    WASHER
  • 20
    6505-033 SPRING, STARTER PLUNGER
    SPRING, STARTER PLUNGER
  • 21
    6505-035 PLUNGER, STARTER
    PLUNGER, STARTER
  • 22
    6505-280 TUBE, AIR VENT
    TUBE, AIR VENT
  • 23
    6505-019 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 24
    6505-020 SPRING, PILOT AIR SCREW
    SPRING, PILOT AIR SCREW
  • 25
    6505-634 PLUG, DRAIN
    PLUG, DRAIN
  • 26
    6505-153 PIN, FLOAT ARM
    PIN, FLOAT ARM
  • 27
    6505-620 RING, BAFFLE
    RING, BAFFLE
  • 28
    6505-610 E, CLIP
    E, CLIP
  • 29
    6505-072 MAIN JET 370**
    MAIN JET 370**
  • 30
    6505-437 WASHER, E, CLIP
    WASHER, E, CLIP
  • 31
    6505-049 FLOAT
    FLOAT
  • 32
    6505-199 SCREW, GUIDE
    SCREW, GUIDE
  • 33
    6505-047 PILOT JET 40
    PILOT JET 40
  • 33
    6505-278 PILOT JET 45 (OVER 5, 000 FT ALT.)
    PILOT JET 45 (OVER 5, 000 FT ALT.)
  • 34
    0770-045 BLOCK, MAGNET
    BLOCK, MAGNET
  • 35
    6505-559 SCREW W/WASHER
    SCREW W/WASHER
  • 36
    6505-583 SCREW
    SCREW
  • 37
    6505-399 WASHER
    WASHER
  • 38
    0630-076 SWITCH, MAGNETIC, CARBURETOR
    SWITCH, MAGNETIC, CARBURETOR
  • 39
    0623-137 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 40
    6505-010 CAP
    CAP
  • 41
    0610-279 HOSE, DRAIN
    HOSE, DRAIN
  • 42
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 43
    6505-612 WASHER
    WASHER
