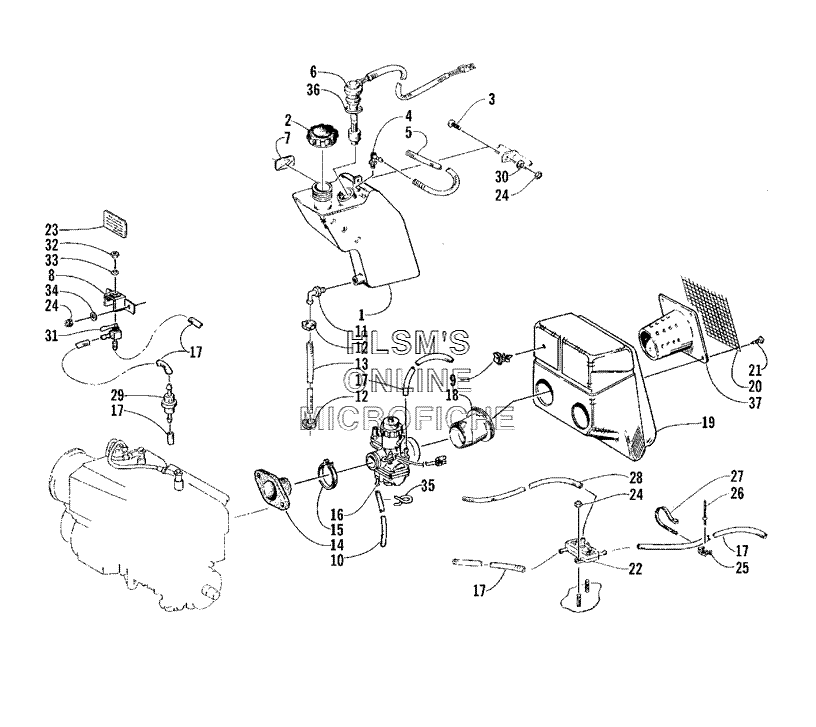

OIL TANK- CARBURETOR- FUEL PUMP- AND SILENCER для Arctic Cat Bearcat 440 II - 2000 года выпуска`
-
№АртикулНазвание
-
10670-239 TANK, OILTANK, OIL
-
20670-341 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
40670-242 VENT, TANKVENT, TANK
-
50610-010 HOSE, VENTHOSE, VENT
-
60609-224 SENSOR, LOW OIL (INC. 36)SENSOR, LOW OIL (INC. 36)
-
71611-564 DECAL, OIL TANKDECAL, OIL TANK
-
80670-284 BRACKET, MOUNTINGBRACKET, MOUNTING
-
90623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
-
100610-279 HOSE, DRAINHOSE, DRAIN
-
110670-075 FITTING, OUTLETFITTING, OUTLET
-
120124-045 CLAMP, HOSECLAMP, HOSE
-
130610-016 HOSE, OIL LINE - 25 FTHOSE, OIL LINE - 25 FT
-
130610-015 HOSE, OIL LINE - 100 FTHOSE, OIL LINE - 100 FT
-
140115-544 FLANGE, CARBURETOR (INC. 15)FLANGE, CARBURETOR (INC. 15)
-
150109-709 . CLAMP, CARBURETOR FLANGE. CLAMP, CARBURETOR FLANGE
-
160770-430 CARBURETOR VM34-432CARBURETOR VM34-432
-
170610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
170610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
180670-080 BOOT, CARBURETORBOOT, CARBURETOR
-
190770-397 SILENCER, AIRSILENCER, AIR
-
200670-155 SCREEN, AIR-INTAKESCREEN, AIR-INTAKE
-
210623-165 CLIP, SCREEN RETAININGCLIP, SCREEN RETAINING
-
220670-163 PUMP, FUELPUMP, FUEL
-
230611-978 DECAL, FUEL SHUT-OFFDECAL, FUEL SHUT-OFF
-
248041-366 NUTNUT
-
250623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
268060-428 RIVETRIVET
-
270123-788 TIE, CABLETIE, CABLE
-
280610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
290510-335 FILTER, IN-LINE GASFILTER, IN-LINE GAS
-
308050-217 WASHERWASHER
-
310670-144 VALVE, SHUT-OFF (INC. 32-33)VALVE, SHUT-OFF (INC. 32-33)
-
320623-287 . NUT. NUT
-
330623-288 . WASHER. WASHER
-
348050-212 WASHERWASHER
-
350623-652 CLAMP, HOSECLAMP, HOSE
-
360609-237 SEAL, GROMMET - OIL SENSORSEAL, GROMMET - OIL SENSOR
-
370670-151 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
Все узлы модели:
- ALTERNATE CARBURETOR PARTS
- ARTICULATING SKID FRAME ASSEMBLY
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN ASSEMBLY
- CARBURETOR VM34-432
- CONSOLE- SWITCHES- AND WIRING ASSEMBLIES
- COOLING FAN
- CRANKCASE AND CYLINDER
- CYLINDER COWLING
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRIC START - STARTER MOTOR ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- FAN HOUSING
- FRONT FRAME- FOOTREST- AND GUARD ASSEMBLIES
- FRONT SUSPENSION AND SHOCK ABSORBER
- GAS TANK AND SEAT ASSEMBLIES
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND INSTRUMENT POD
- HOOD AND WINDSHIELD ASSEMBLY
- INTAKE ASSEMBLY
- MAGNETO
- OIL PUMP
- • OIL TANK- CARBURETOR- FUEL PUMP- AND SILENCER
- PISTON AND CRANKSHAFT
- RACK- BACKREST- TAILLIGHT- AND HITCH ASSEMBLIES
- REAR SUSPENSION AXLE ASSEMBLY
- REAR SUSPENSION/FRONT ARM ASSEMBLY
- REAR SUSPENSION/REAR ARM ASSEMBLY
- RECOIL STARTER
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
