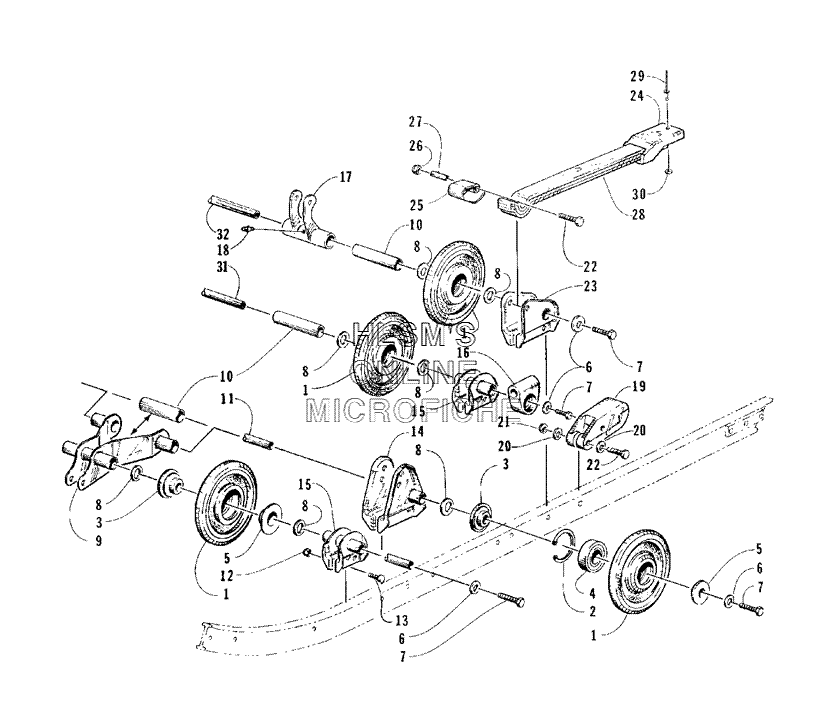

REAR SUSPENSION AXLE ASSEMBLY для Arctic Cat Bearcat 440 II - 2000 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC. 2-5)WHEEL, IDLER (INC. 2-5)
-
20123-798 . RING, RETAINING. RING, RETAINING
-
30104-340 . INSERT, WHEEL - INSIDE. INSERT, WHEEL - INSIDE
-
40107-598 . BEARING. BEARING
-
50104-341 . INSERT, WHEEL - OUTSIDE. INSERT, WHEEL - OUTSIDE
-
60123-260 WASHERWASHER
-
78012-132 SCREW, CAPSCREW, CAP
-
80123-439 WASHERWASHER
-
90704-187 BRACKET, FRONT SHOCKBRACKET, FRONT SHOCK
-
100603-105 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
110604-576 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
128040-426 NUT, LOCKNUT, LOCK
-
138002-131 SCREW, CAPSCREW, CAP
-
140704-190 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
140704-191 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
150704-201 BRACKET, AUXILIARY WHEELBRACKET, AUXILIARY WHEEL
-
160604-403 SLIDE, SPRINGSLIDE, SPRING
-
170704-374 PIVOT, SHOCK (INC. 18)PIVOT, SHOCK (INC. 18)
-
189916-963 FITTING, GREASEFITTING, GREASE
-
190604-612 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
208050-277 WASHERWASHER
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-227 SCREW, CAPSCREW, CAP
-
230704-206 BRACKET, MOUNTING - AUXILIARY WHEEL - RIGHTBRACKET, MOUNTING - AUXILIARY WHEEL - RIGHT
-
230704-207 BRACKET, MOUNTING - AUXILIARY WHEEL - LEFTBRACKET, MOUNTING - AUXILIARY WHEEL - LEFT
-
240604-859 BLOCK, WEARBLOCK, WEAR
-
250604-860 CLIP, RETAININGCLIP, RETAINING
-
268041-486 NUT, LOCKNUT, LOCK
-
270604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
281604-450 SPRING, OVERLOAD - ASSEMBLY (INC. 24 AND 29-30)SPRING, OVERLOAD - ASSEMBLY (INC. 24 AND 29-30)
-
298060-411 . RIVET. RIVET
-
300123-149 . WASHER. WASHER
-
310604-578 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
320604-641 AXLE, INNERAXLE, INNER
