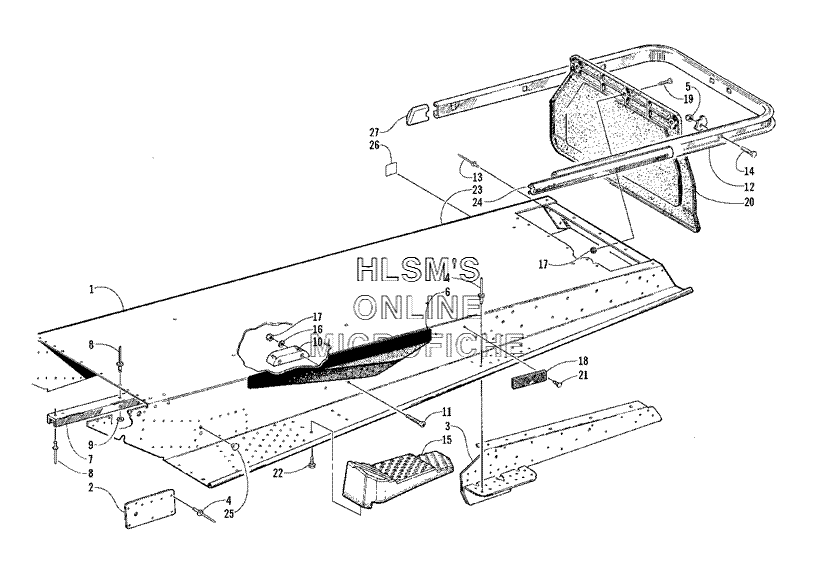

TUNNEL AND REAR BUMPER для Arctic Cat Bearcat 440 II - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0718-784 TUNNEL ASSEMBLY (INC. 3)
    TUNNEL ASSEMBLY (INC. 3)
  • 2
    0606-554 PLATE, SUSPENSION MOUNTING (FRONT)
    PLATE, SUSPENSION MOUNTING (FRONT)
  • 3
    0716-123 BRACKET, SUSPENSION MOUNTING - REAR LEFT
    BRACKET, SUSPENSION MOUNTING - REAR LEFT
  • 3
    0716-124 BRACKET, SUSPENSION MOUNTING - REAR RIGHT
    BRACKET, SUSPENSION MOUNTING - REAR RIGHT
  • 4
    8060-504 RIVET
    RIVET
  • 5
    8041-366 NUT
    NUT
  • 6
    3611-480 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 6
    3611-481 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 7
    0716-103 WEARSTRIP, TUNNEL
    WEARSTRIP, TUNNEL
  • 8
    8060-510 RIVET
    RIVET
  • 9
    0123-149 WASHER
    WASHER
  • 10
    0604-497 GUIDE, TRACK
    GUIDE, TRACK
  • 11
    0623-268 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0616-502 BUMPER, REAR
    BUMPER, REAR
  • 13
    8060-484 RIVET
    RIVET
  • 14
    8011-040 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 15
    1606-478 FOOTREST - REAR RIGHT
    FOOTREST - REAR RIGHT
  • 15
    1606-479 FOOTREST - REAR LEFT
    FOOTREST - REAR LEFT
  • 16
    8050-217 WASHER
    WASHER
  • 17
    8040-366 NUT, LOCK
    NUT, LOCK
  • 18
    0606-029 REFLECTOR, REAR - RED
    REFLECTOR, REAR - RED
  • 19
    8017-582 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0616-613 SNOWFLAP, REVERSE
    SNOWFLAP, REVERSE
  • 21
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 22
    0623-057 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    0616-583 PLATE, END - TUNNEL
    PLATE, END - TUNNEL
  • 24
    0616-504 INSERT, BUMPER
    INSERT, BUMPER
  • 25
    0606-983 PLUG, BODY
    PLUG, BODY
  • 26
    0411-053 DECAL, CE
    DECAL, CE
  • 27
    0616-396 END CAP, BUMPER - RIGHT
    END CAP, BUMPER - RIGHT
  • 27
    0616-397 END CAP, BUMPER - LEFT
    END CAP, BUMPER - LEFT
